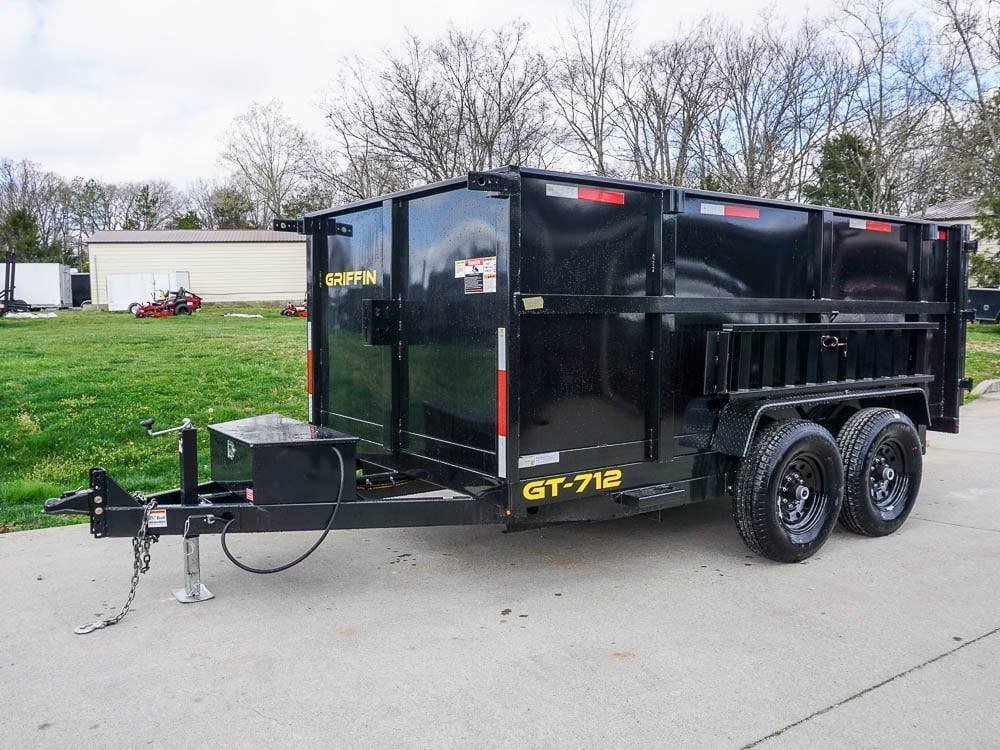

7×12 Hydraulic Dump Trailer with 4ft Sides (2) 7K Axles

7×12 Hydraulic Dump Trailer with 4ft Sides (2) 7K Axles

Features:

• The length of the trailer is 12 feet, or 144 inches.
• The sidewall height measures 48 inches, providing ample vertical space for hauling.
• The width of the trailer is 7 feet, or 82.5 inches.
• The floor height is set at 29 inches above the ground for easy loading.
• The coupler height stands at 18 inches, ensuring compatibility with various towing vehicles.
• The cross members are made of 2″ x 3″ tubes, spaced 16 inches on center for structural support.
• The wheels are finished with a black powder coat for enhanced durability and protection.

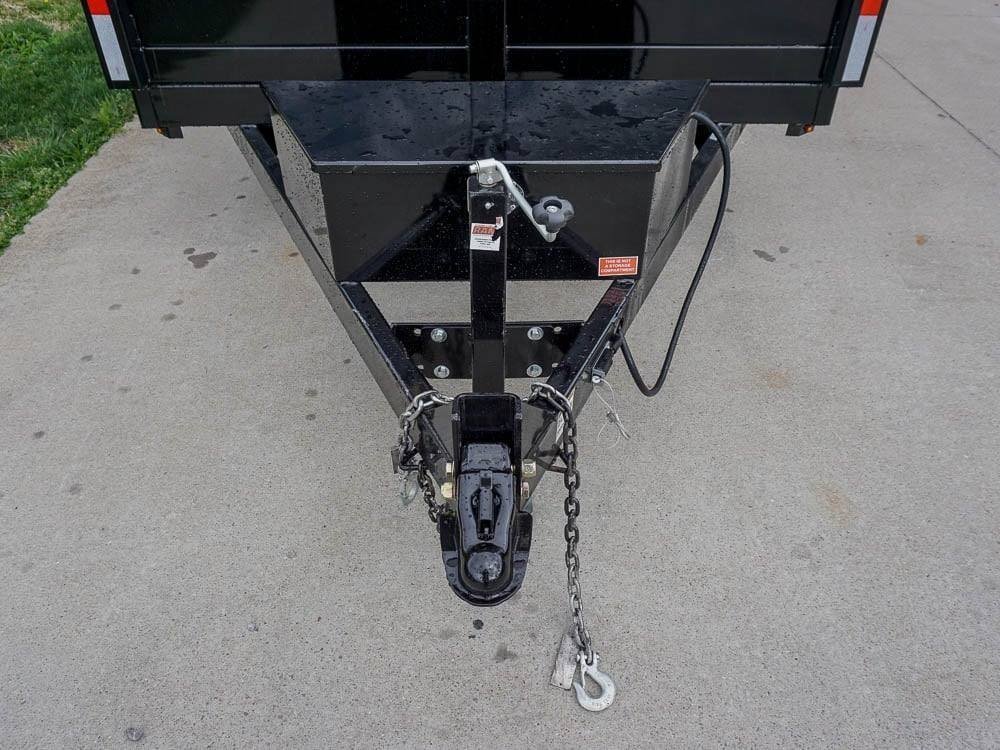

• The coupler is a 2-5/16″ adjustable coupler, allowing for flexible towing options.
• The tires are 16-inch radial tires designed for smooth performance on the road.
• The power unit features a 12v DC hydraulic pump, providing 3200 PSI for lifting and 1500 PSI for lowering.
• The spare tire mount is a standard mount for easy accessibility and storage of a spare tire.
• The battery used is an Interstate deep cycle marine battery, ensuring reliable power supply.
• The ramps are 80-inch C-channel fender-mounted ramps for convenient loading and unloading.
• The jack is an adjustable 7000 lb. top wind drop leg jack for stability and ease of use.
• The lighting system includes amber and red LED lights for increased visibility and safety.

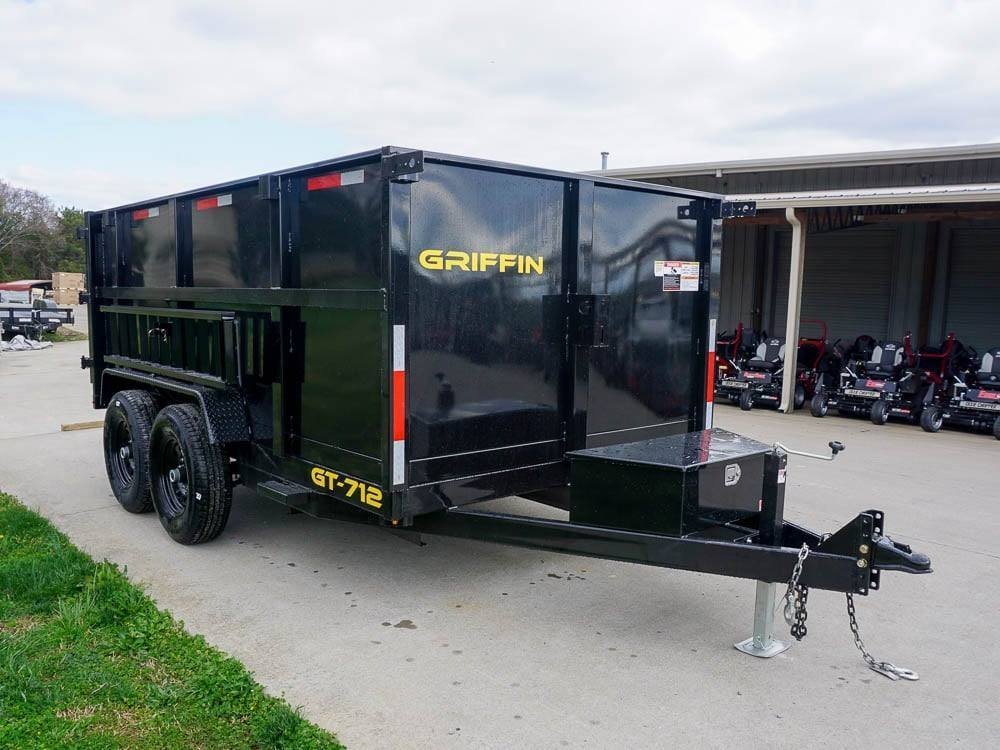

• The control box features easy front access with a key lock for security and convenience.
• The wiring harness consists of a 3-piece plug-and-play system for straightforward installation.

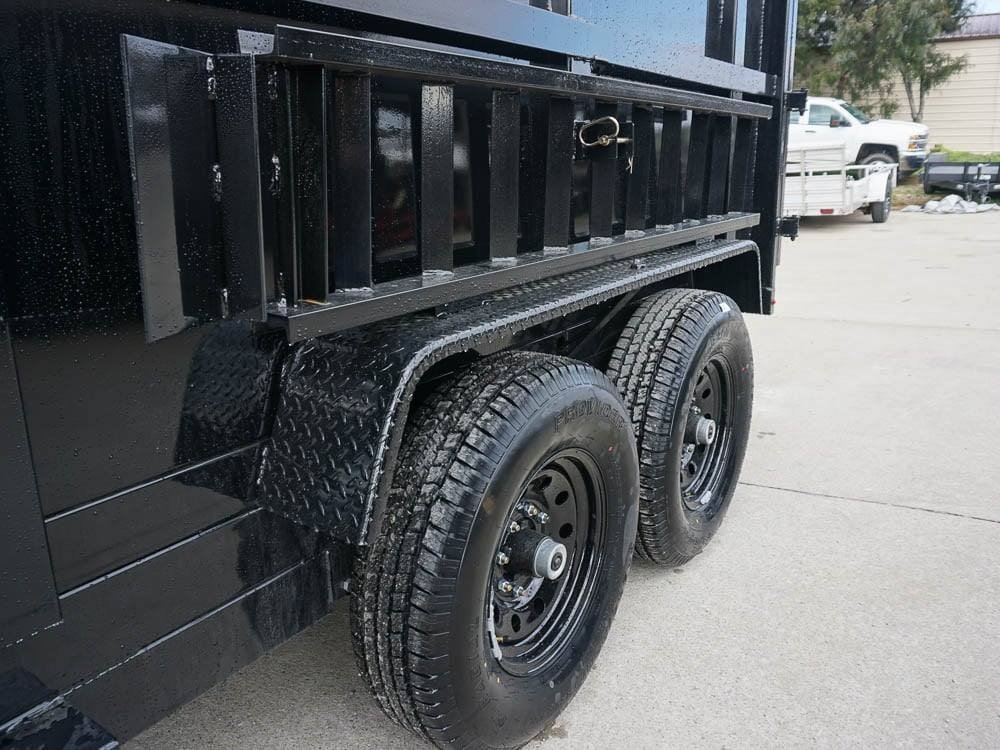

• The fenders are constructed from 14-gauge formed treadplate for added strength and protection.
• The electric plug is a 7-pin round connector, ensuring a reliable electrical connection.

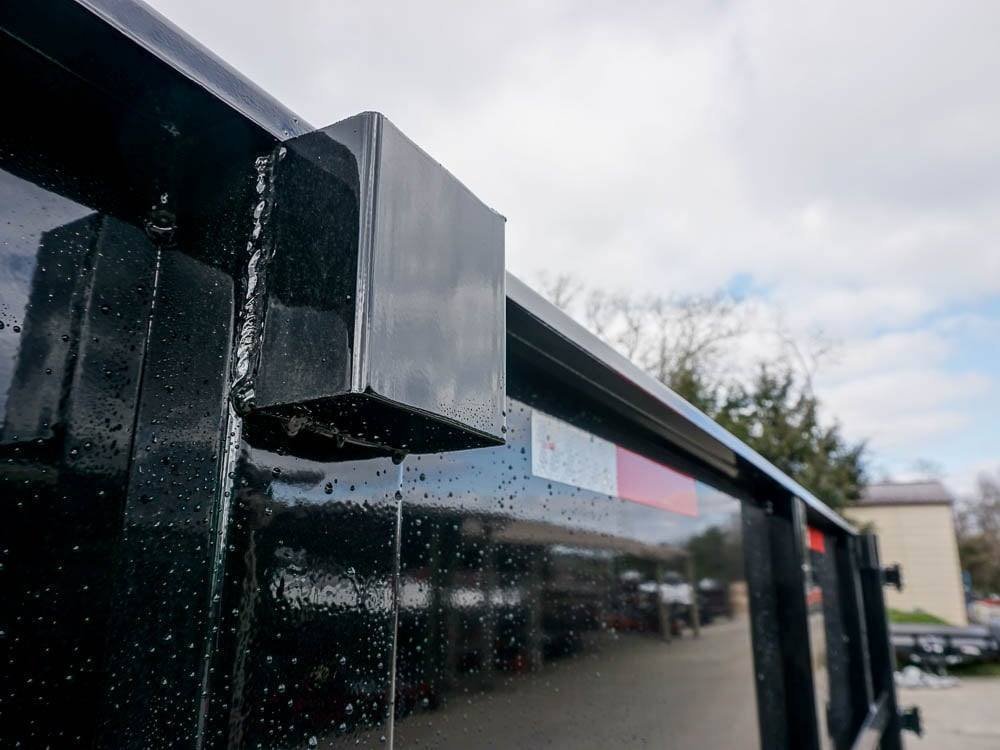

• The stake pockets are 2″ x 4″ tubes for additional structural support and tie-down options.

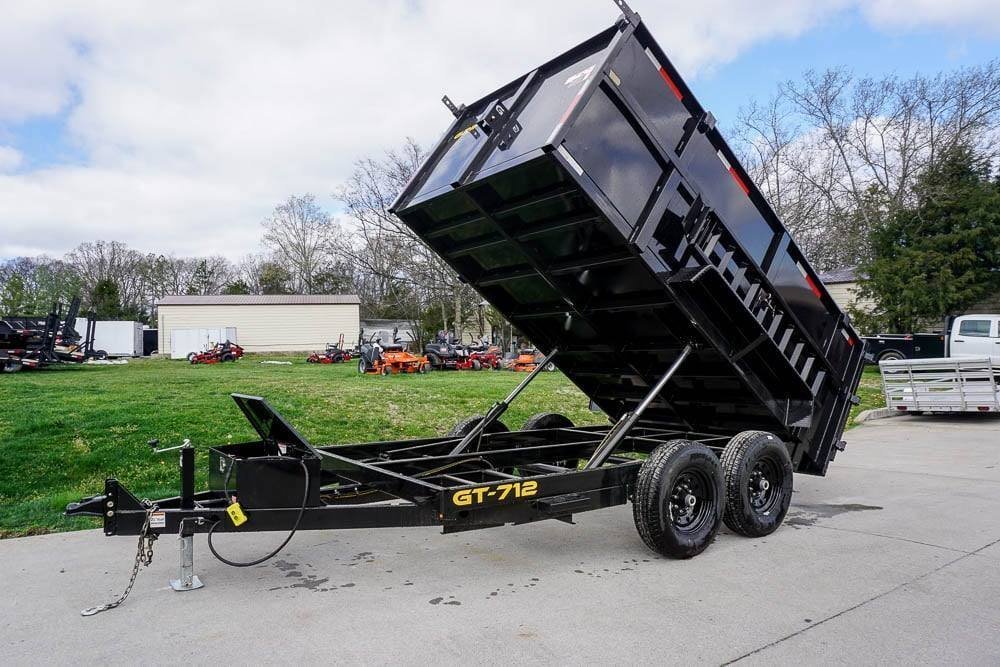

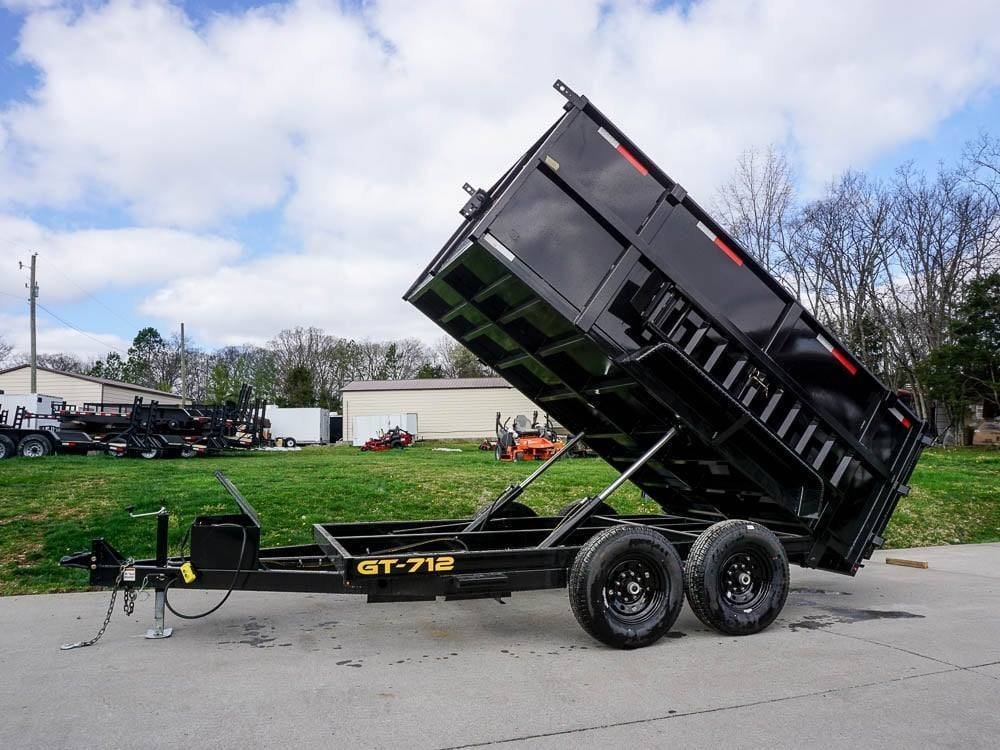

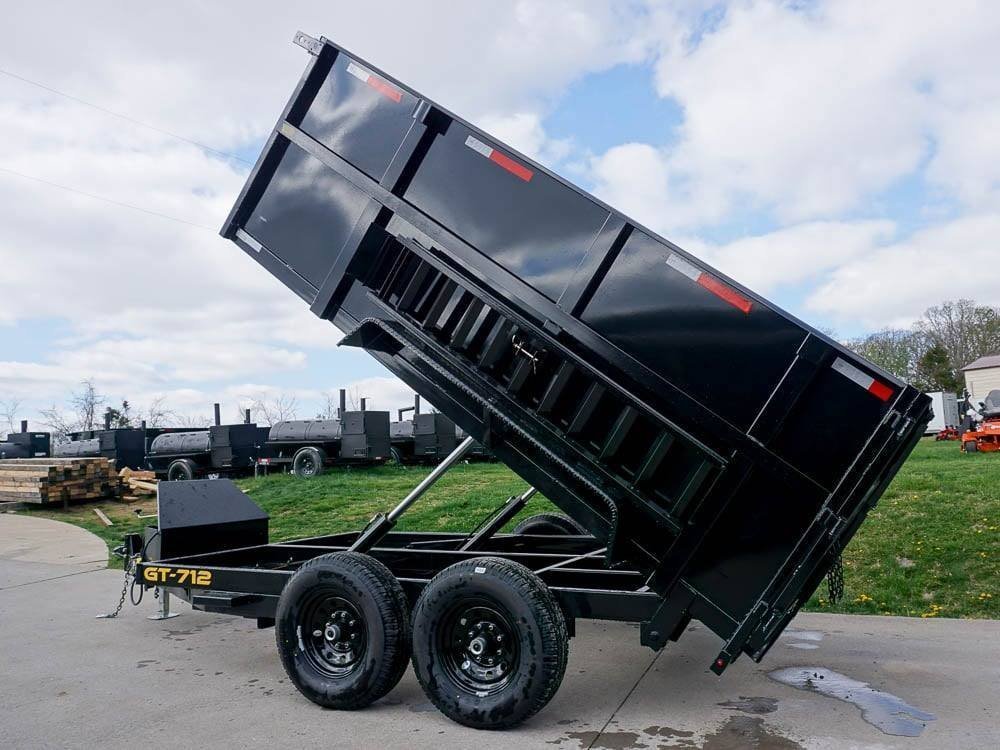

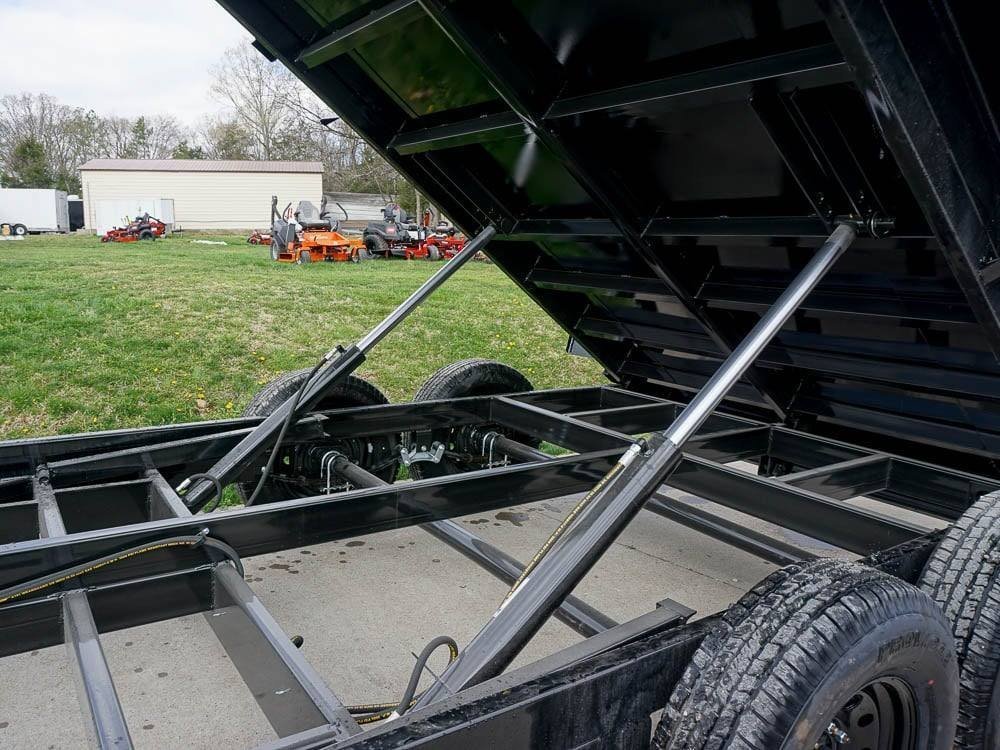

• The lift system utilizes two 3″ x 30″ hydraulic cylinders for powerful and efficient lifting capabilities.
• The gussets are 2″ x 12″ in dimension, located at the front and rear for wall extension support.
• The floor and walls are made of 10-gauge smooth steel for maximum durability and strength.
• The safety chains are equipped with two forged slip hooks, measuring 5/16″ x 35″, with a capacity of 11,700 lbs.
• The integrated tarp system features fully covered housing to protect the contents during transport.
• The D-rings include five 5000 lb. D-rings welded into the floor for secure tie-down points.

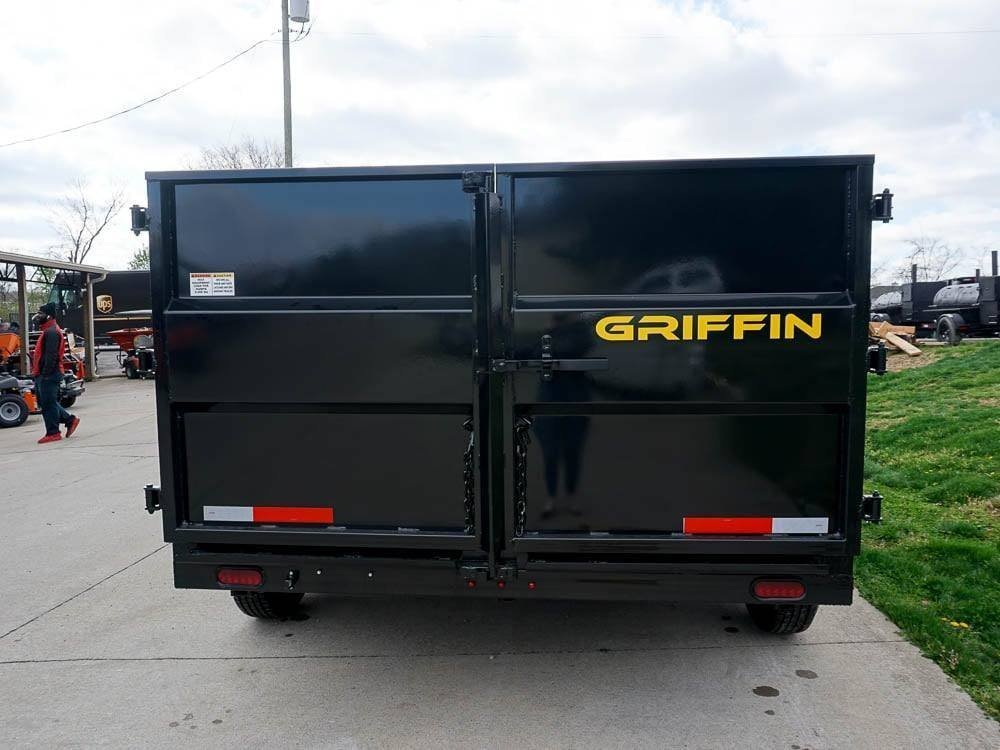

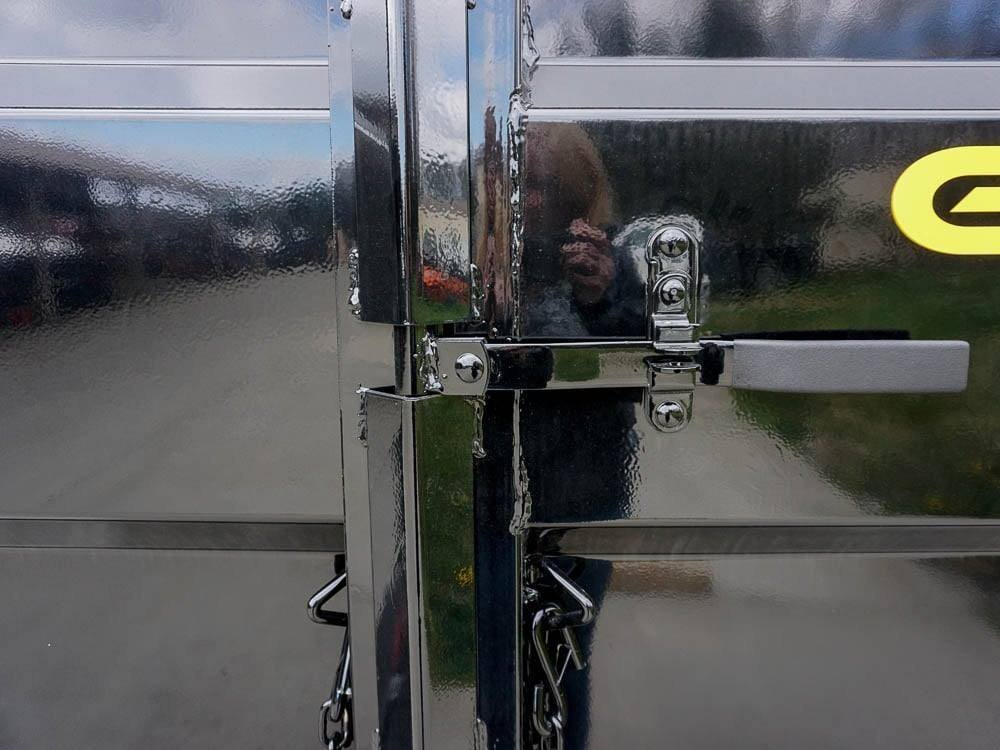

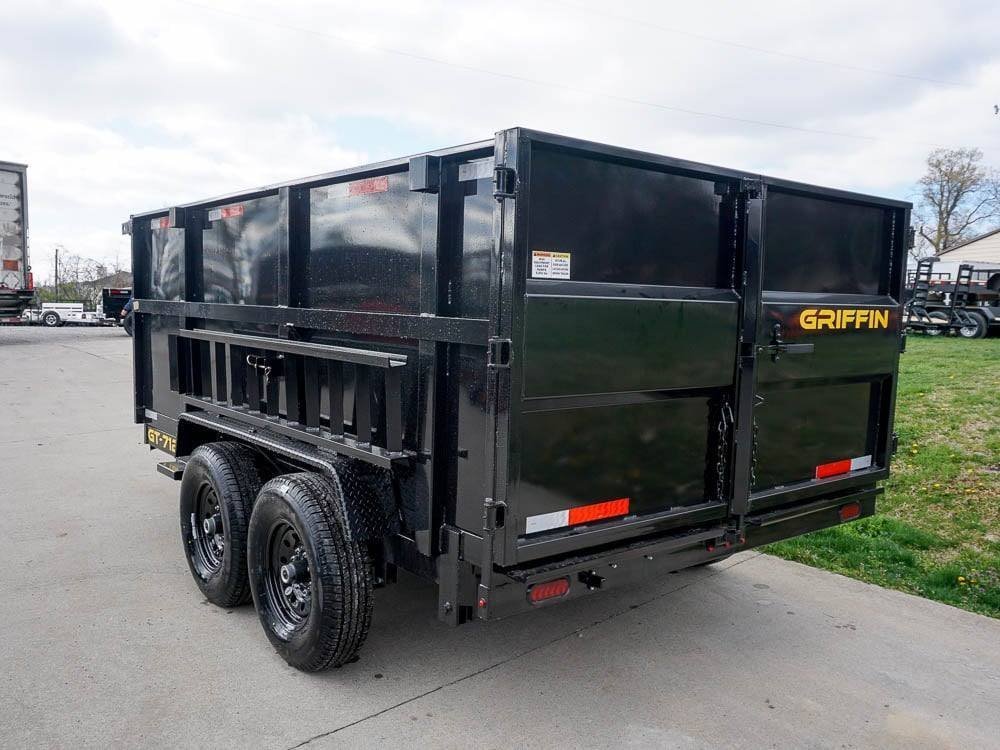

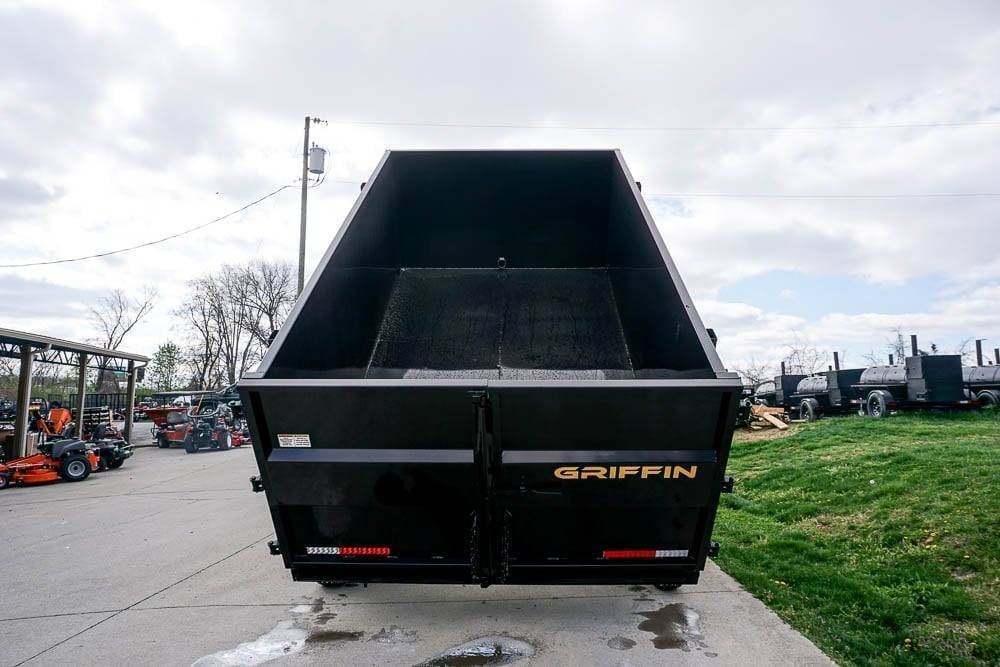

• The rear gate is a 2-way combination spreader/barn design for versatile usage.
• The axles are tandem with EZ Lube and galvanized components for easy maintenance and longevity.
• The paint finish is a high gloss black powder coat for a sleek appearance and added protection.
• The suspension system features equalized leaf springs for smooth towing and stability.
• The style of the trailer is low-profile, enhancing handling and aerodynamics.
• The overall length of the trailer is 198 inches.
• The GVWR (Gross Vehicle Weight Rating) is 12,000 lbs., indicating the maximum safe weight for the trailer.
• The GAWR (Gross Axle Weight Rating) is 6000 lbs., which is the maximum weight supported by the axles.
• The curb weight of the trailer is 3,620 lbs., representing its weight without any load.
• The tongue is constructed from a 2″ x 5″ tube for added strength and stability.
• The payload capacity is 8,380 lbs., allowing for substantial hauling capability.
• The estimated tongue weight is 580 lbs., providing a balanced load distribution.
• The dump capacity of the trailer is 8,000 lbs., making it suitable for large loads.
