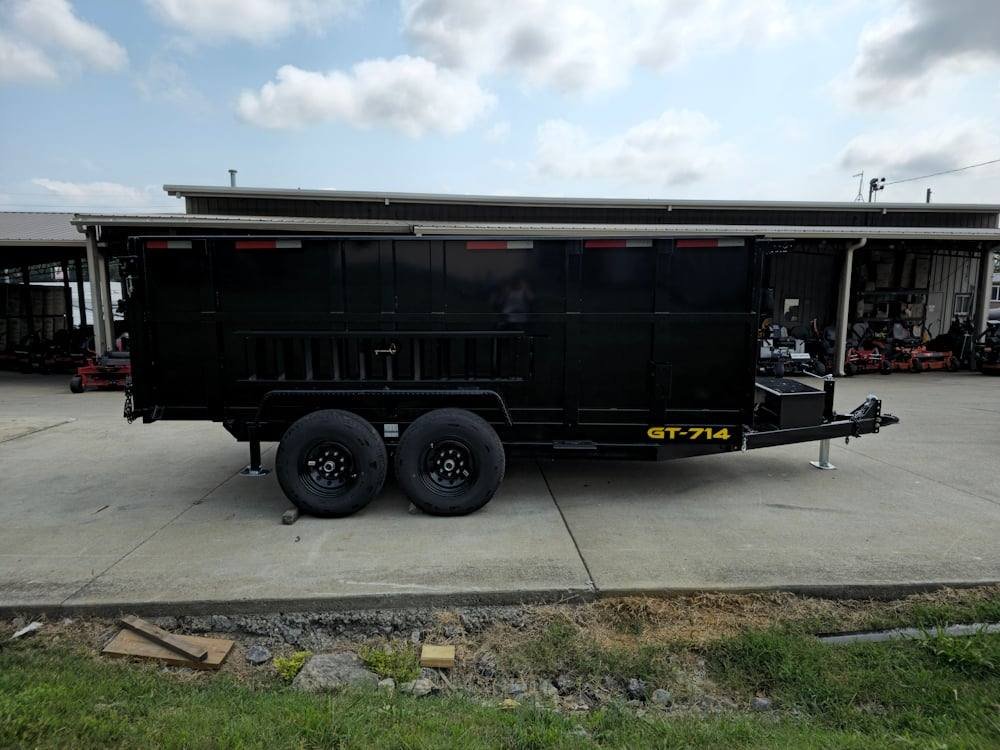

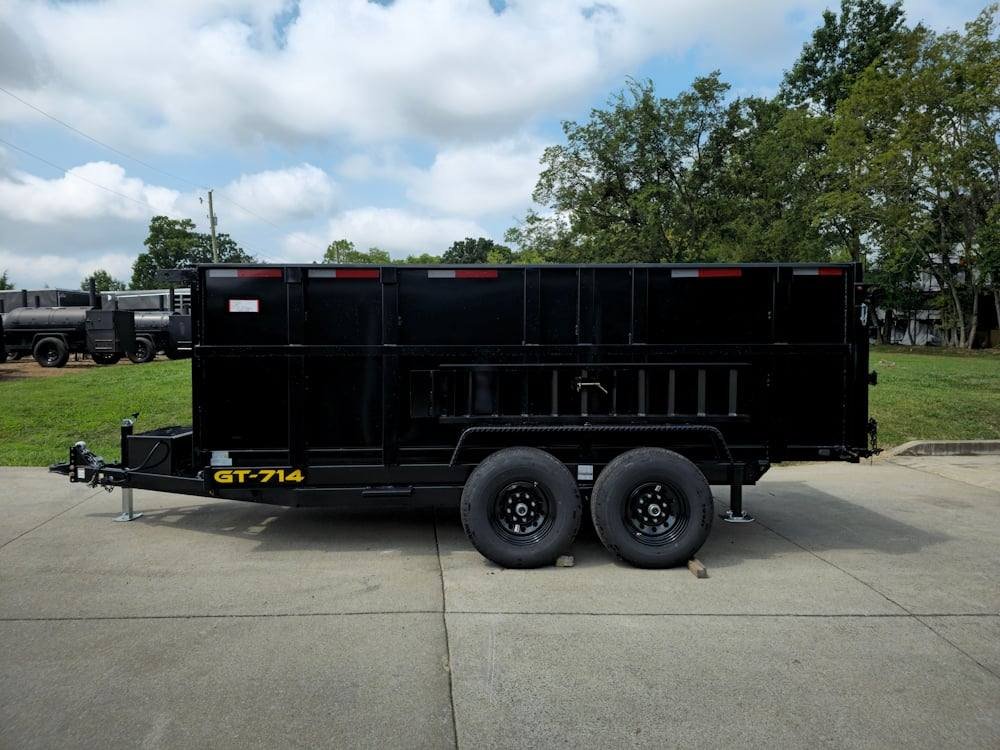

7×14 Telescopic Hydraulic Dump Trailer with 4ft Sides (2) 7K Axles 14K GVWR

7×14 Telescopic Hydraulic Dump Trailer with 4ft Sides (2) 7K Axles 14K GVWR

Engineered for the extreme ‘abuse’ of high-volume material management, this 7×14 Telescopic Dump Trailer is a high-integrity mechanical handshake between massive lift leverage and superior containment. Featuring a specialized Front-Mount Telescopic Cylinder, this rig acts as a structural force multiplier by pushing the bed from the furthest forward point, providing the maximum mechanical advantage for displacing heavy loads. Supported by dual 7,000 lb Axles, it delivers a formidable 14,000 lb GVWR, while the 4-foot reinforced steel sides provide the high-volume ‘intake’ capacity required for mulch, brush, and demolition debris, ensuring a seamless laminar flow for your most demanding job site cycles.

Features:

• 14′ Extended Load Capacity: Provides 168″ of bed length, offering generous space for hauling gravel, debris, equipment, and bulky materials.

• Extra-Deep 4ft Steel Sides: 48″ tall walls give exceptional material containment, ideal for landscaping, construction, and cleanup jobs that require maximum volume.

• Wide 7′ Loading Area: A spacious 82.5″ interior width makes loading pallets, machinery, and bulk material easier and more efficient.

• Low 29″ Deck Height: Helps reduce loading effort while keeping the trailer stable when working with heavier items.

• Adjustable 2-5/16″ Coupler (18″ Height): Ensures easy hookup with a variety of tow vehicles for versatile fleet compatibility.

• Reinforced 2″ x 3″ Tube Cross Members: Placed 16″ on center for superior frame strength, load distribution, and long-term durability.

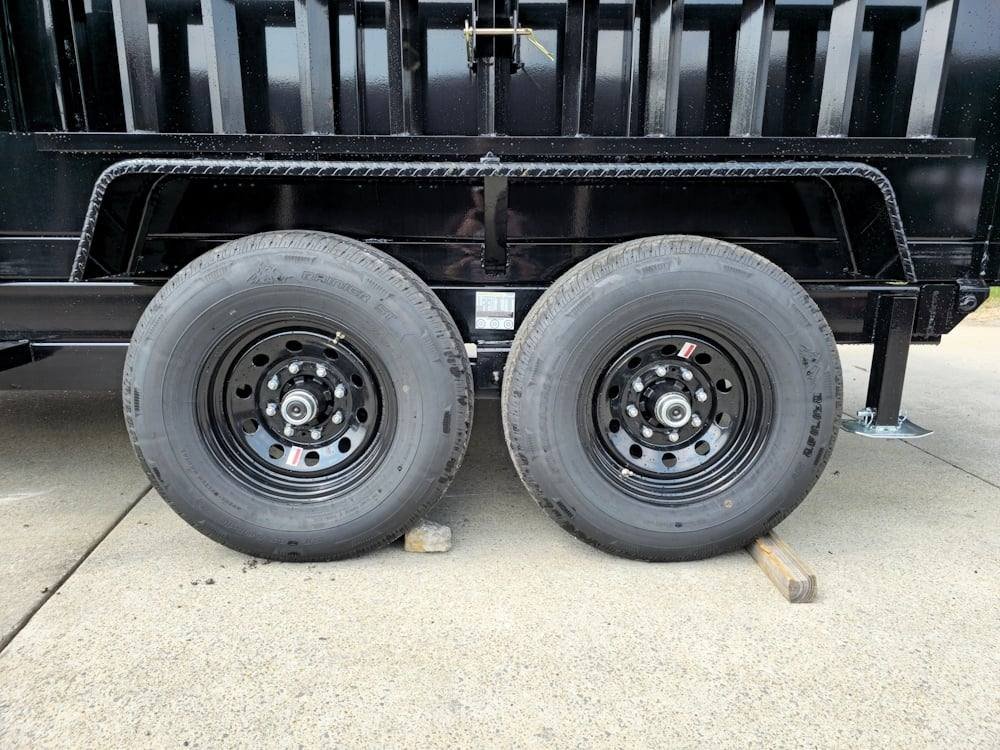

• Black Powder-Coated Wheels & 16″ Radial Tires: Radial tires offer a smoother ride and better heat resistance, while the powder-coat finish protects against rust and corrosion.

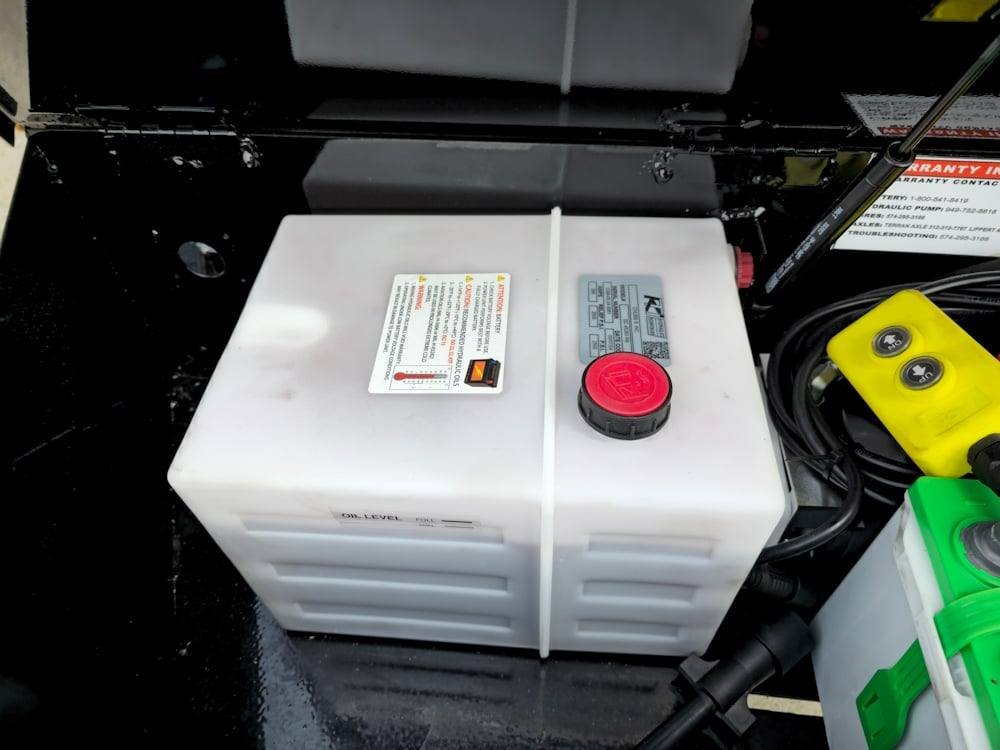

• 12V Hydraulic Pump (3200 PSI Power Up): Drives the powerful 3-stage telescopic cylinder, delivering strong, reliable dump action for heavy material loads.

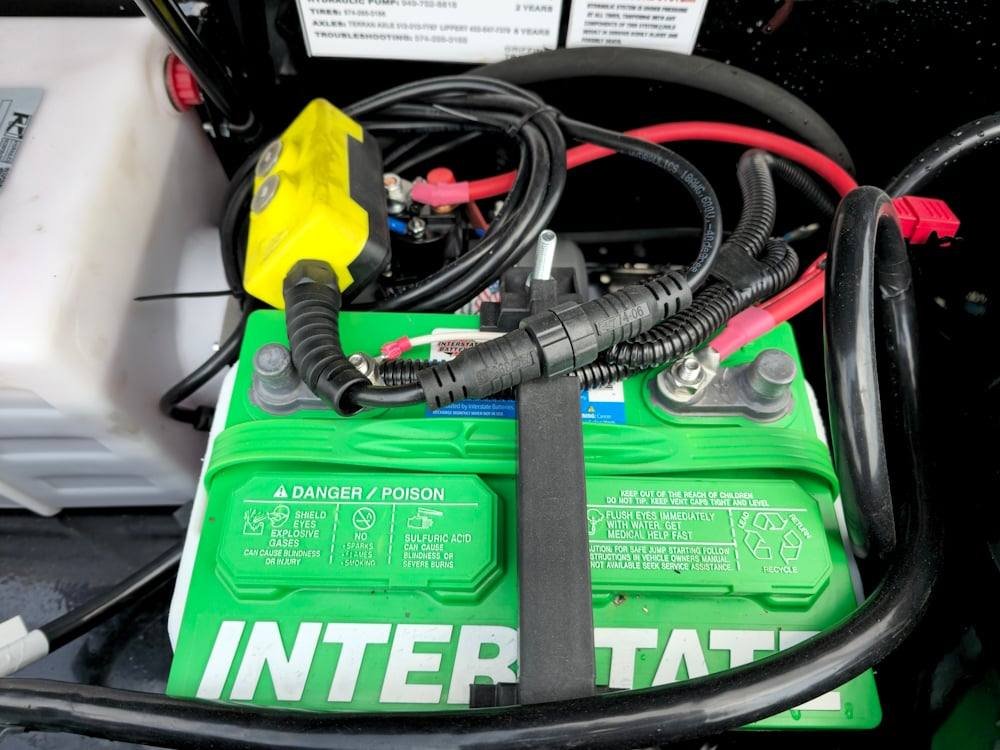

• Interstate Deep Cycle Marine Battery: Built for long run times, consistent power delivery, and dependable operation of hydraulic functions.

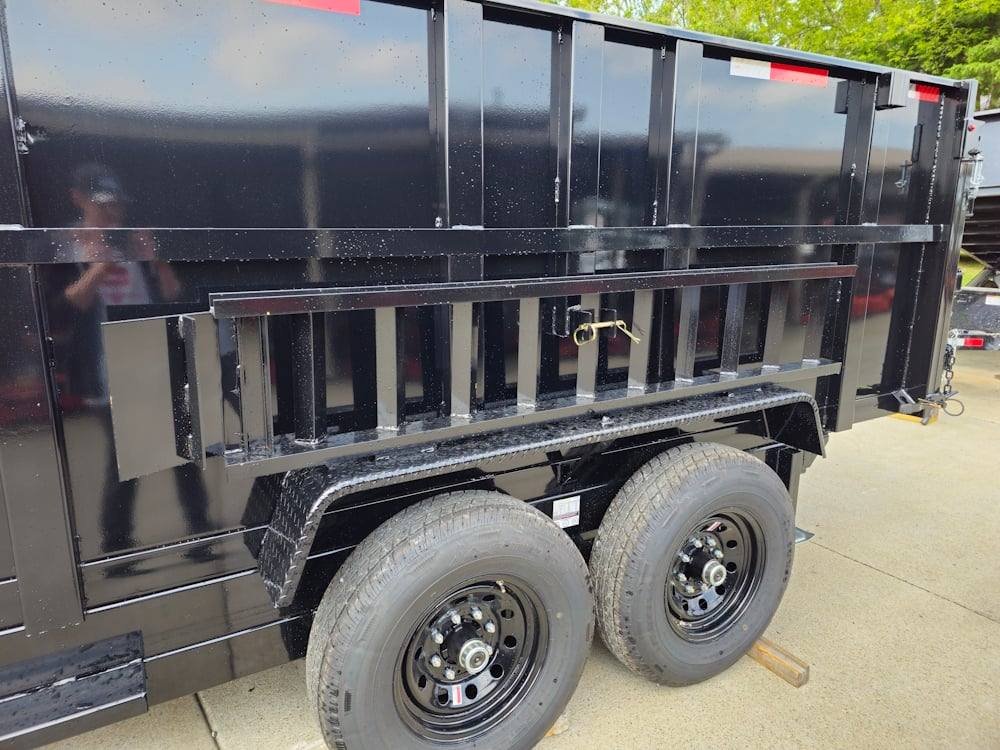

• 80″ C-Channel Ramps: Fender-mounted ramps are sturdy and easy to deploy for loading skid steers, tractors, and compact equipment.

• 7,000lb Drop-Leg Jack: Provides stable lifting with a top-wind design and smooth adjustability.

• Amber & Red LED Lighting System: Bright, long-lasting LED markers ensure visibility and safety during night hauling or low-light jobsite operation.

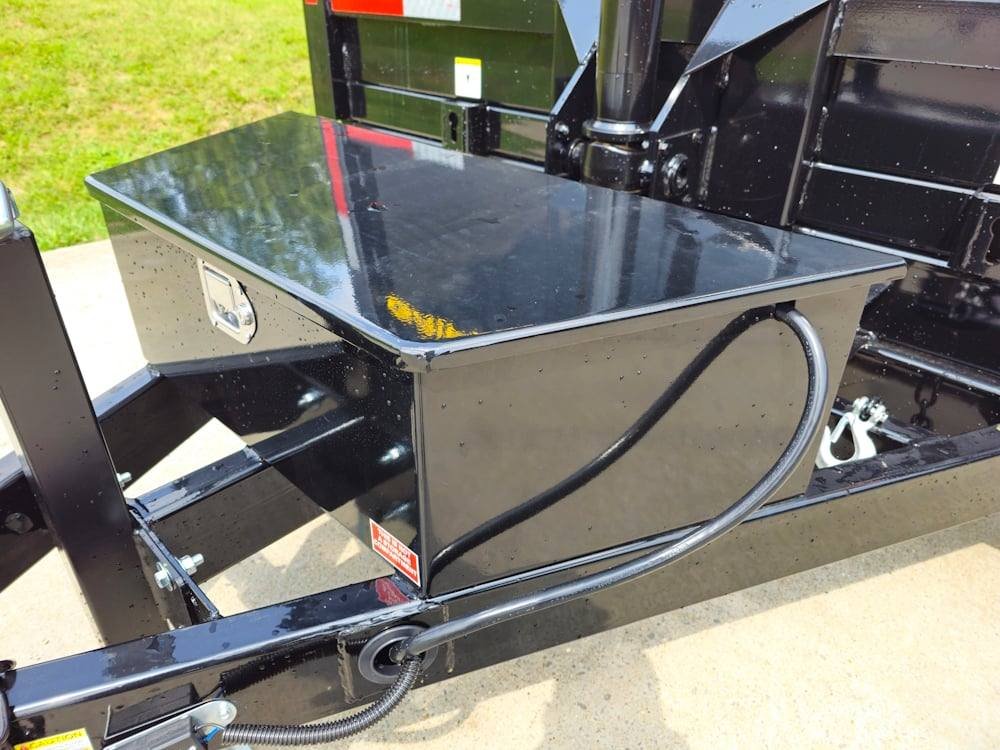

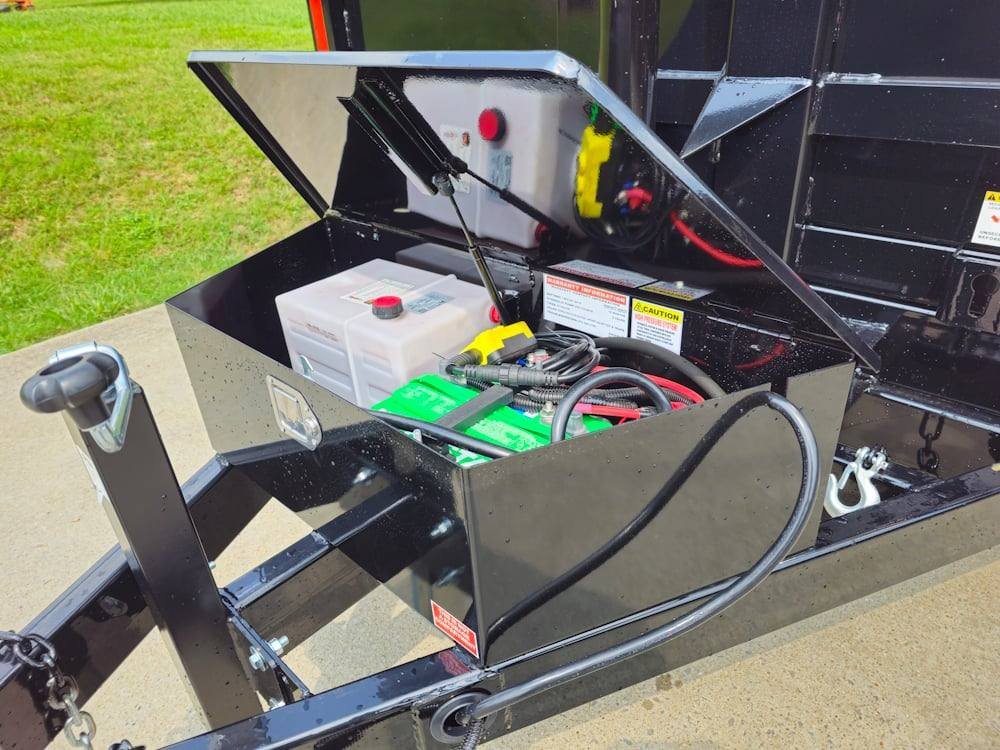

• Key-Lock Control Box: Secure front access keeps controls protected while remaining easy to operate.

• Plug-and-Play Wiring Harness: Three-piece modular system reduces maintenance time and simplifies replacement.

• 14-Gauge Treadplate Fenders: Formed steel fenders resist impacts and protect the trailer body from road kick-up.

• 7-Pin RV-Style Connector: Provides standardized electrical compatibility with most tow vehicles.

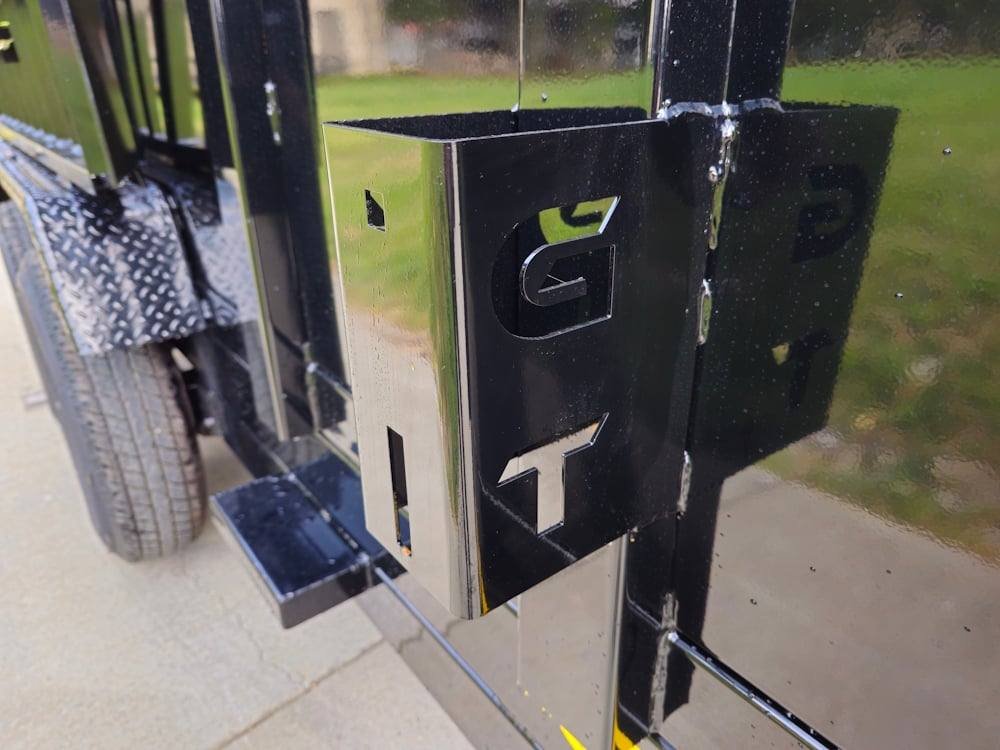

• 2″ x 4″ Stake Pockets: Offer flexible tie-down and side-extension options for added utility.

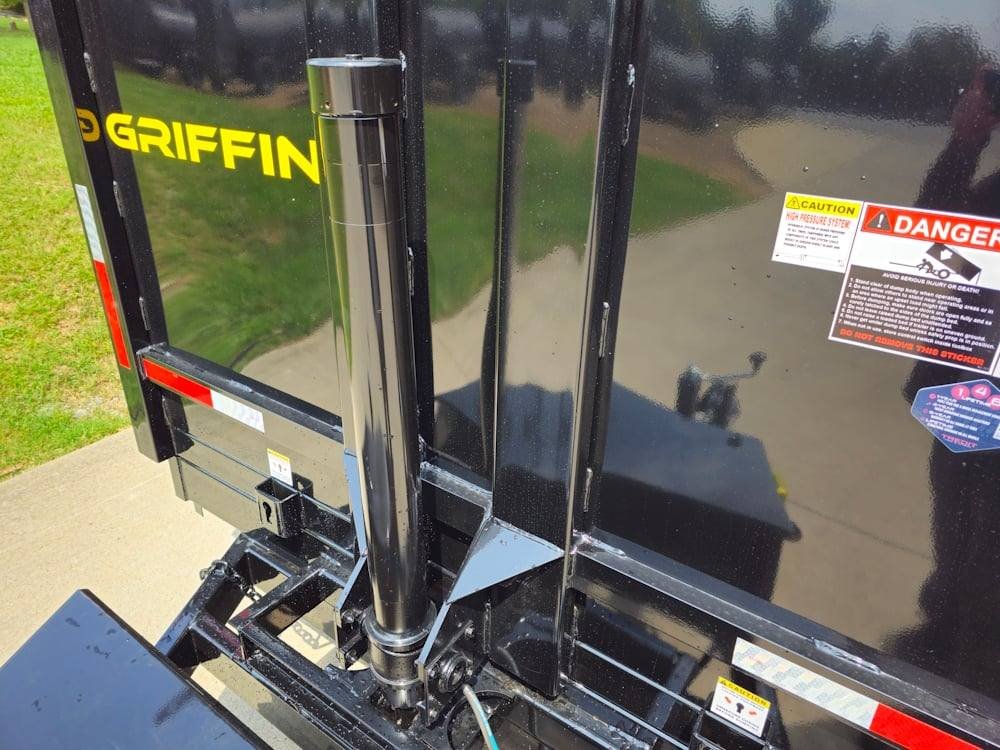

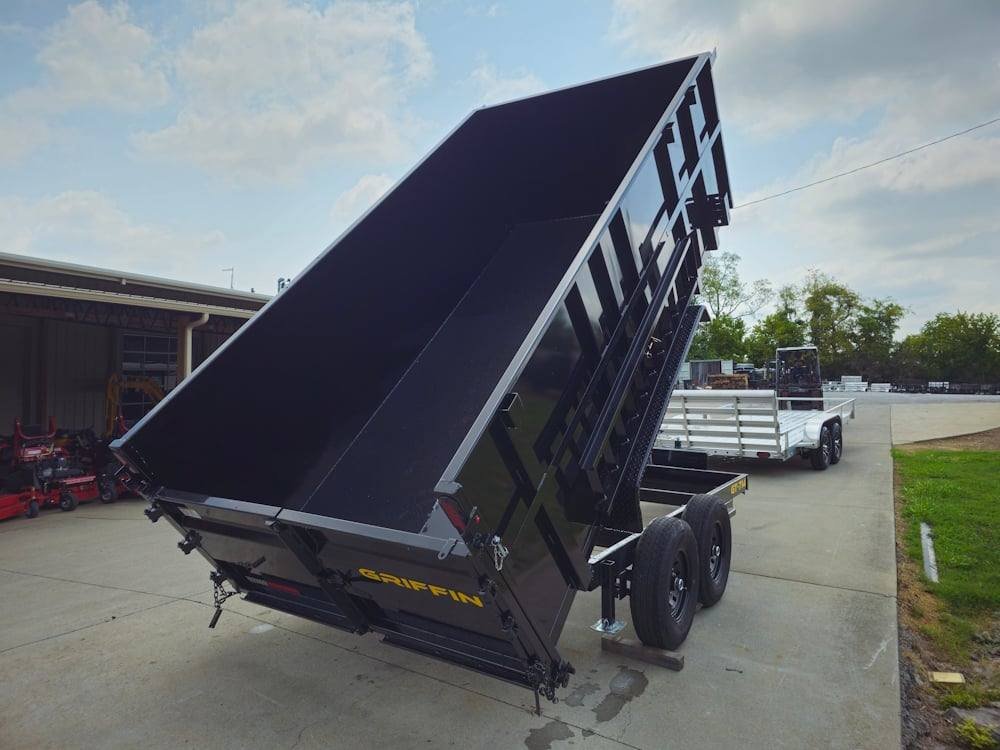

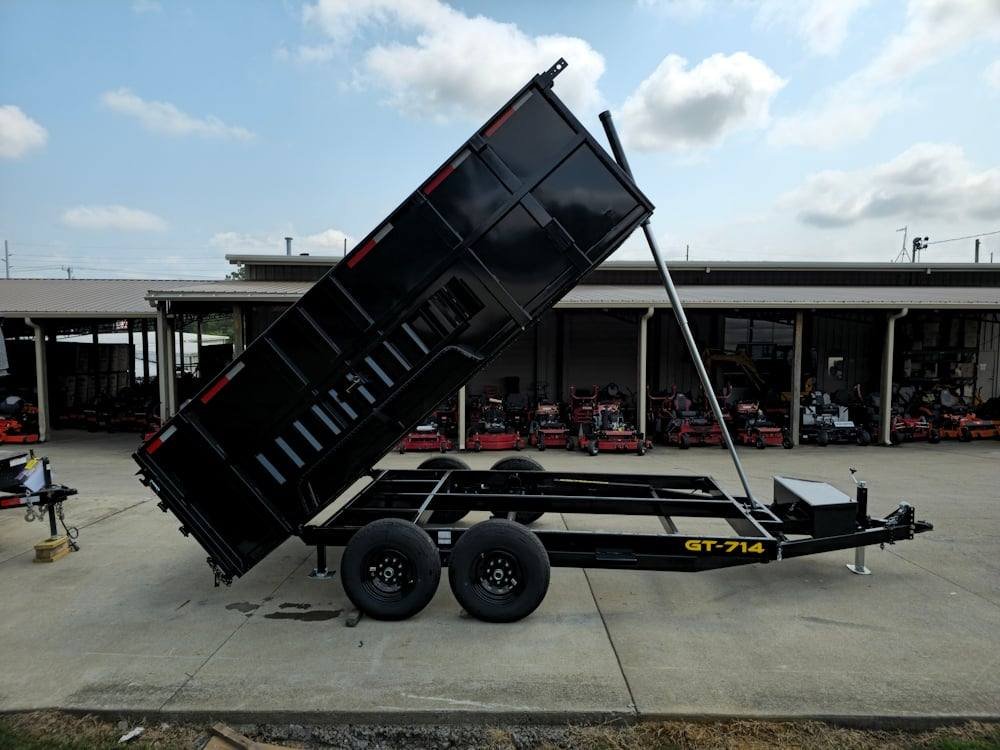

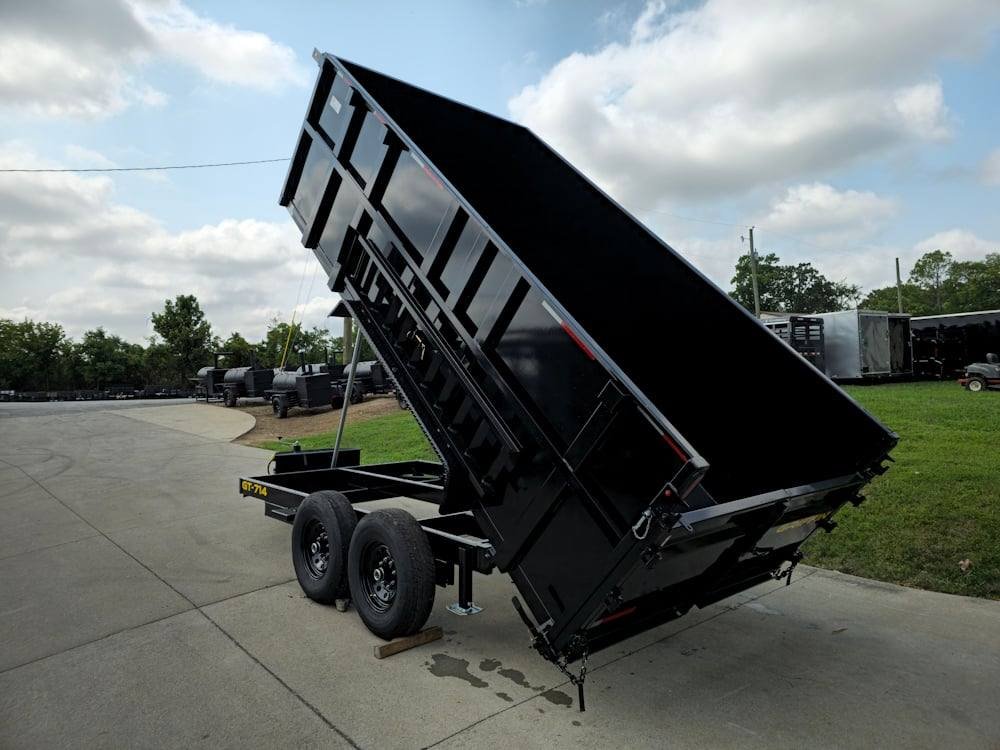

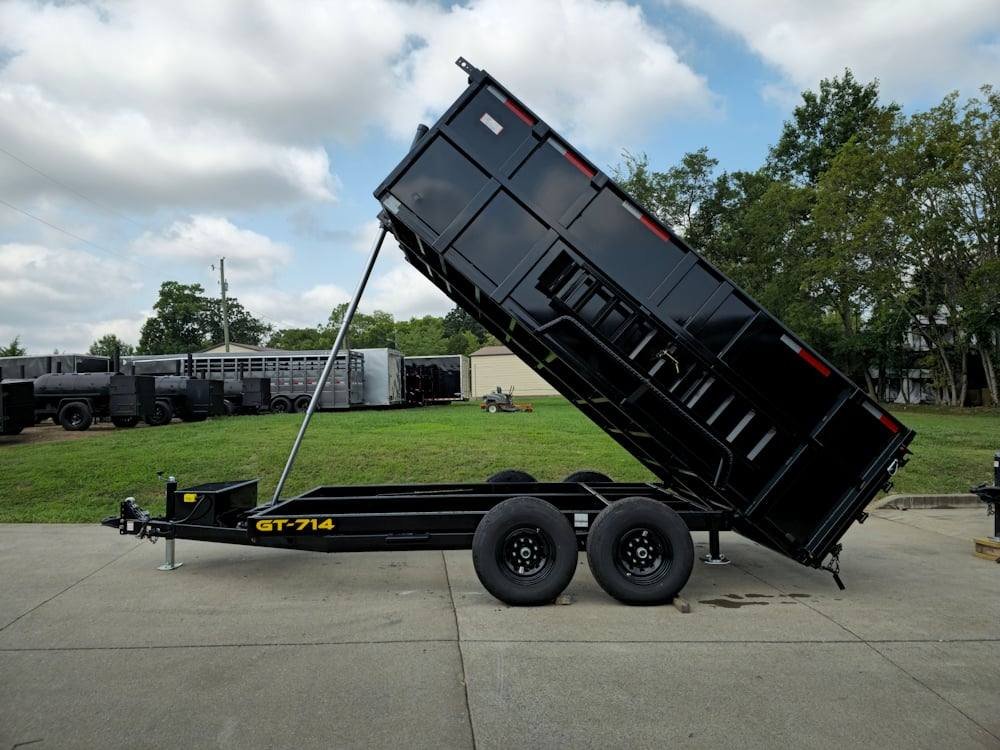

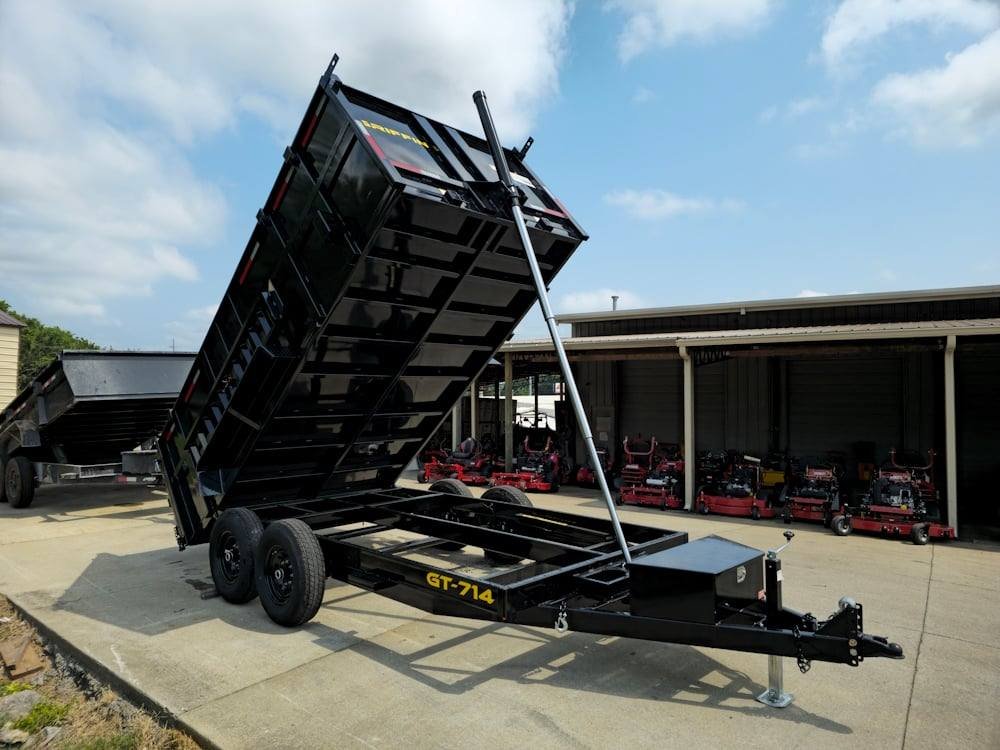

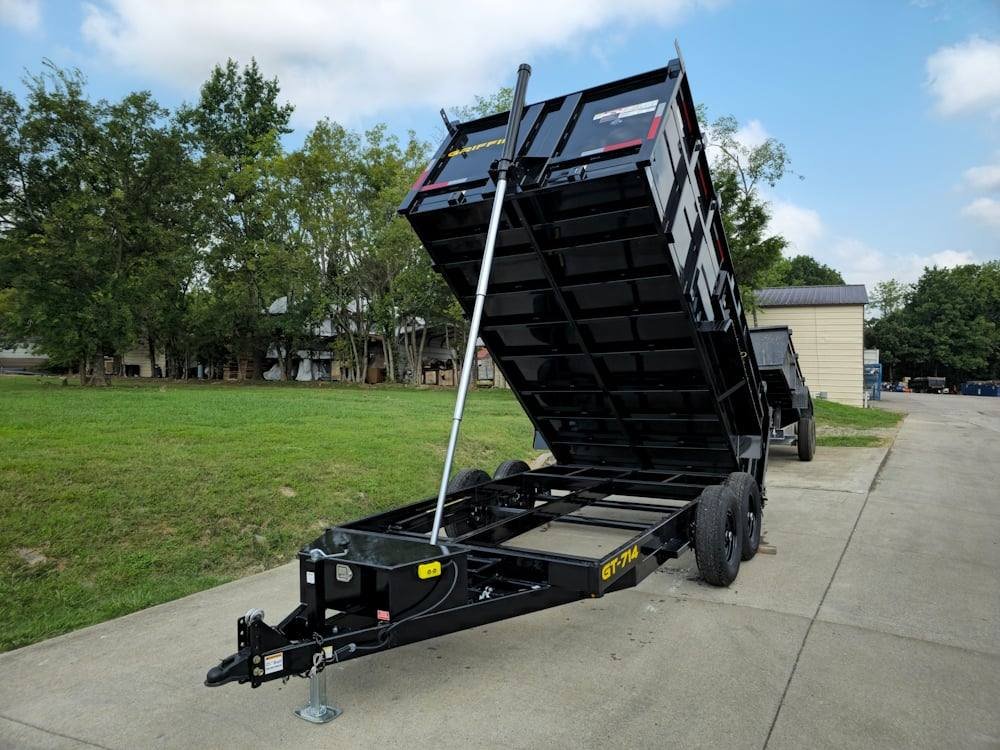

• 3-Stage Telescopic Lift System: Delivers smooth, powerful dumping with excellent lift angles, ideal for dense loads like dirt or asphalt.

• Front & Rear 2″ x 12″ Gussets: Reinforce the frame and allow for solid wall extensions when needed.

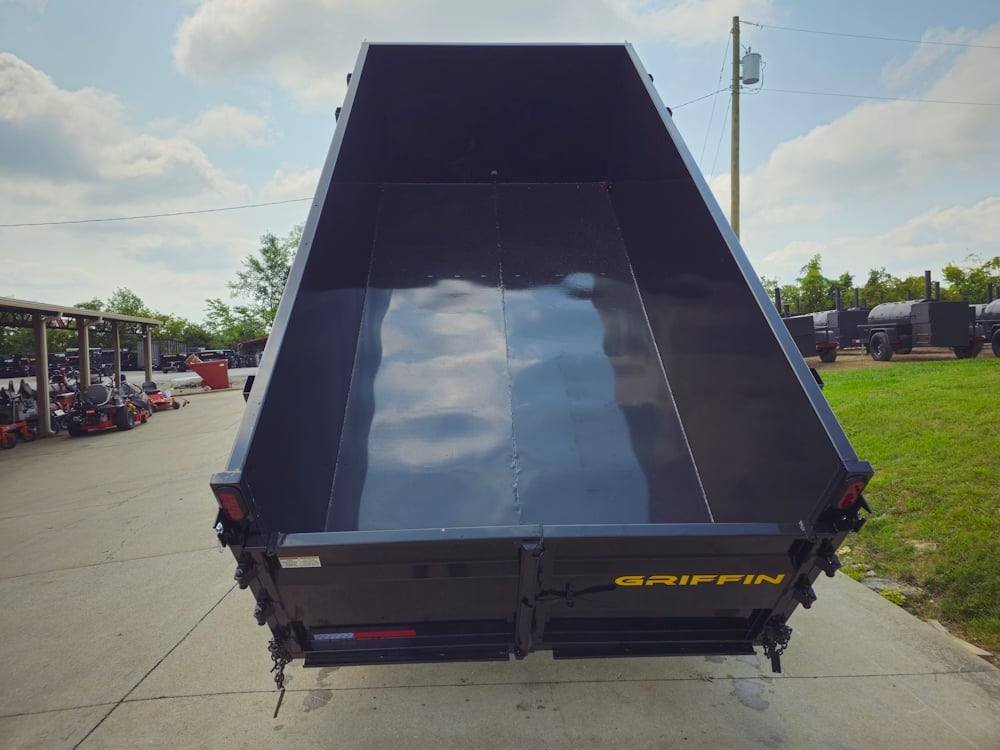

• 10-Gauge Smooth Steel Floor & Walls: Heavy-duty steel construction ensures long-lasting rigidity and performance under heavy loads.

• Forged Safety Chains (11,700lb Rated): Heavy-duty chains and slip hooks keep the trailer securely connected during transport.

• Five 5,000lb Welded D-Rings: Provide reliable tie-down points for securing equipment and cargo.

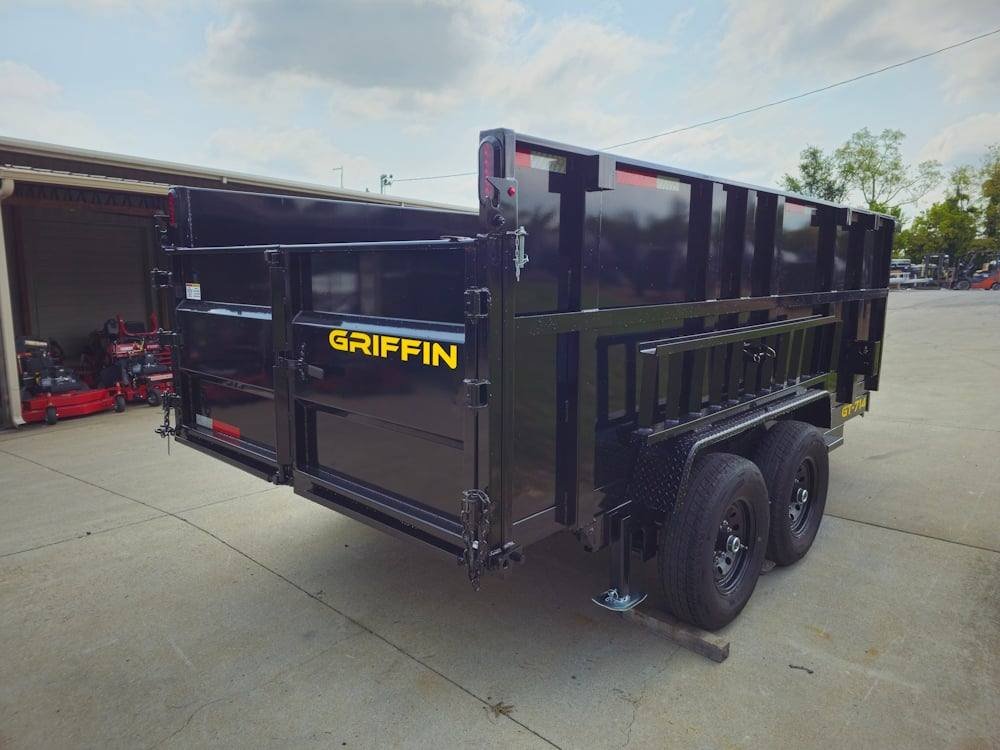

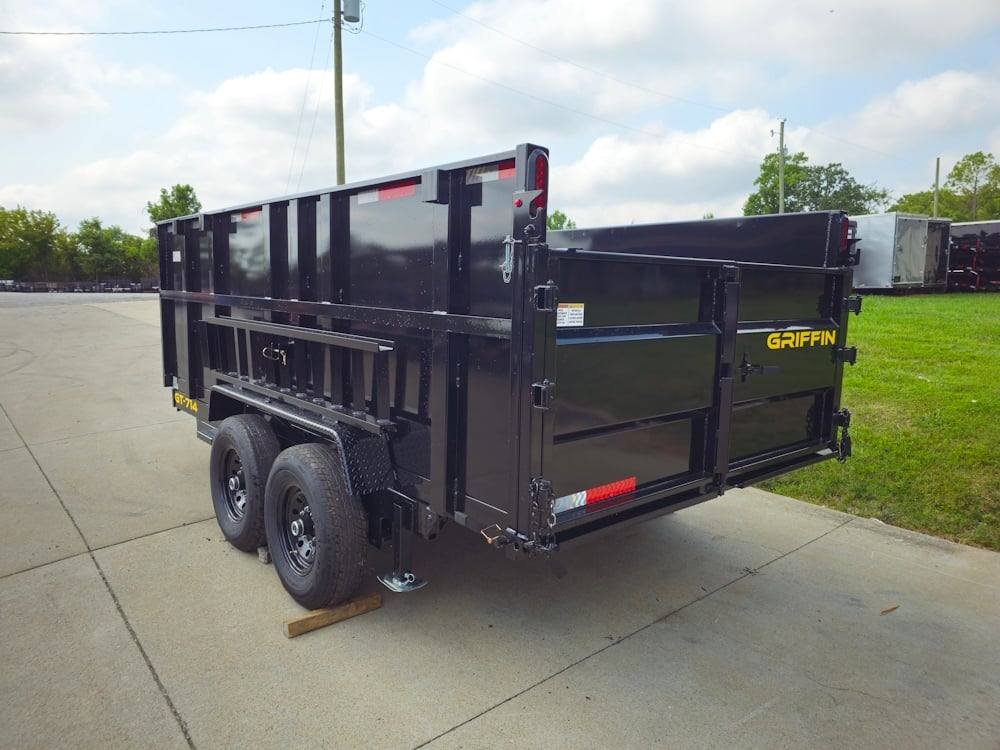

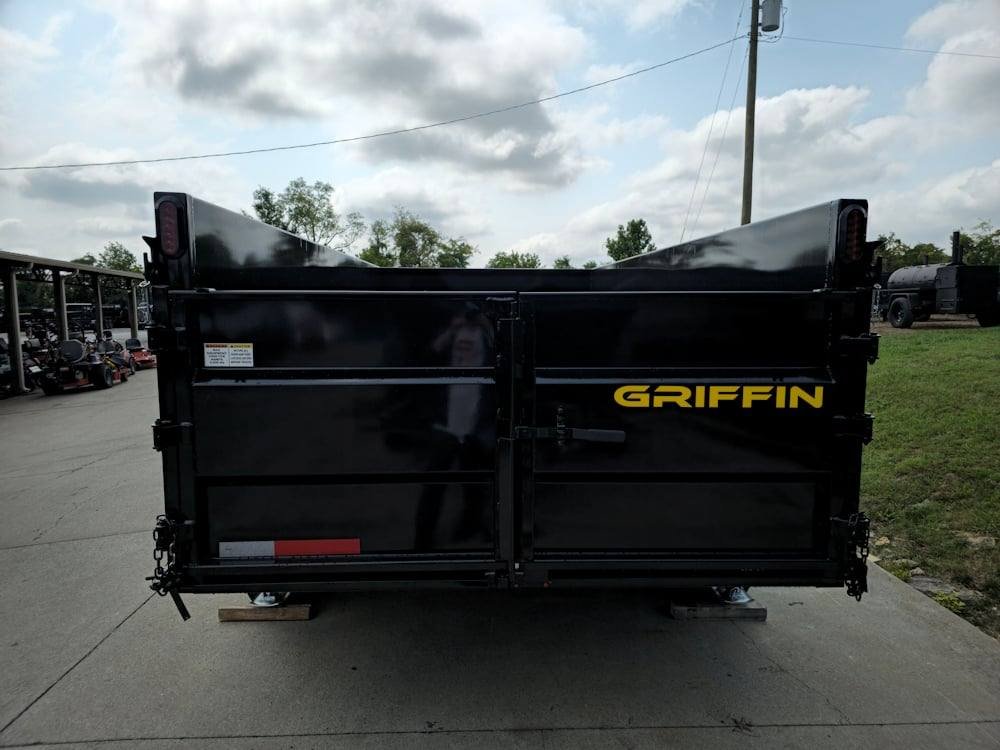

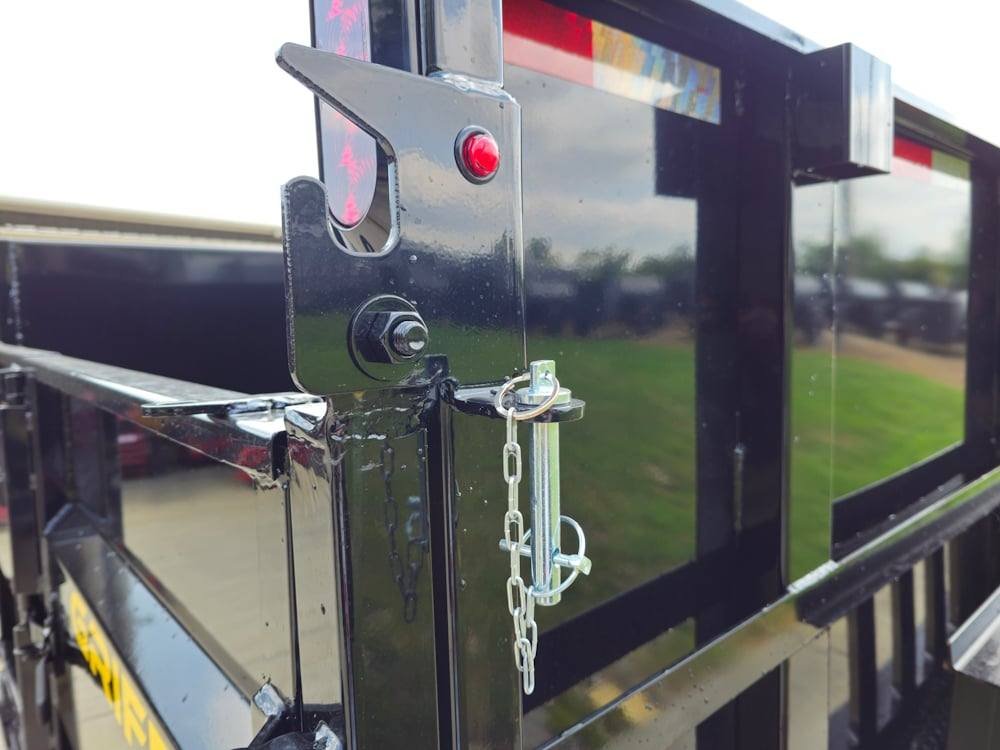

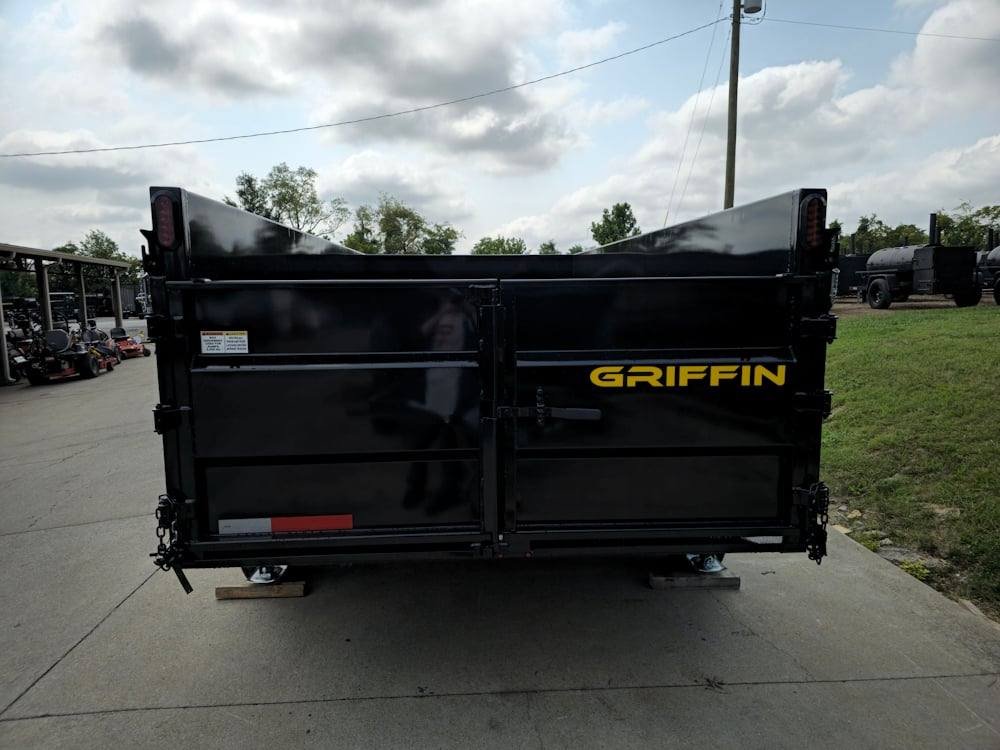

• 2-Way Barn/Spreader Gate: Allows controlled spreading of gravel or easy full-swing barn-door unloading.

• EZ Lube Tandem 7K Axles: Name-brand axles with galvanized components boost reliability and reduce maintenance demands.

• High Gloss Powder Coat Finish: Sherwin-Williams baked-on coating resists chips, corrosion, and fading.

• Leaf Spring Suspension: Equalized springs deliver a smoother ride across uneven terrain.

• Low-Pro Frame Design: Lower center of gravity improves towing stability and loading visibility.

• 14K GVWR with 10,096lb Payload Capacity: Built for serious work, supporting large material loads with confidence.

• 2″ x 5″ Steel Tube Tongue: Heavy-duty tongue construction provides increased front-end strength and towing stability.

• 10,000lb Dump Capacity: Handles large, dense loads with ease—perfect for contractors and commercial operations.
