7×16 Telescopic Dump Trailer with 4ft Sides (2) 7K Axles 14k GVWR

7×16 Telescopic Dump Trailer with 4ft Sides (2) 7K Axles 14k GVWR

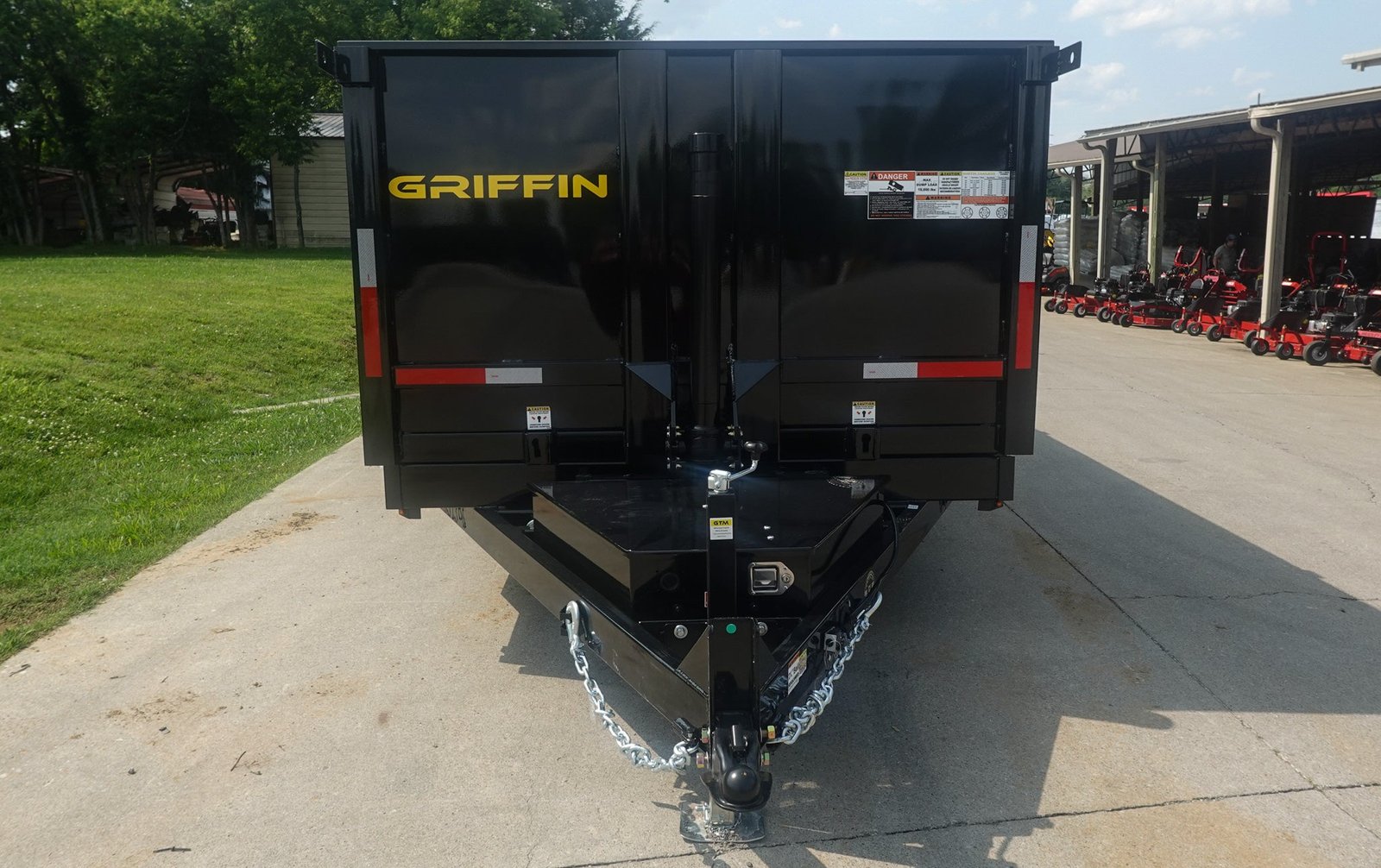

This 7′ x 16′ Telescopic Dump Trailer is a heavy-duty industrial hauler designed for the most demanding debris removal, demolition, and material delivery tasks. By utilizing a Telescopic Front-Mount Hoist—the same technology found in large dump trucks—this trailer provides a superior lifting angle and maximum leverage, allowing it to dump heavy, uneven loads that standard “scissor-lift” trailers might struggle with.

With 4-foot high steel sides and a massive 14,000 lb GVWR, this trailer is built to move high volumes of mulch, brush, or heavy construction rubble with ease.

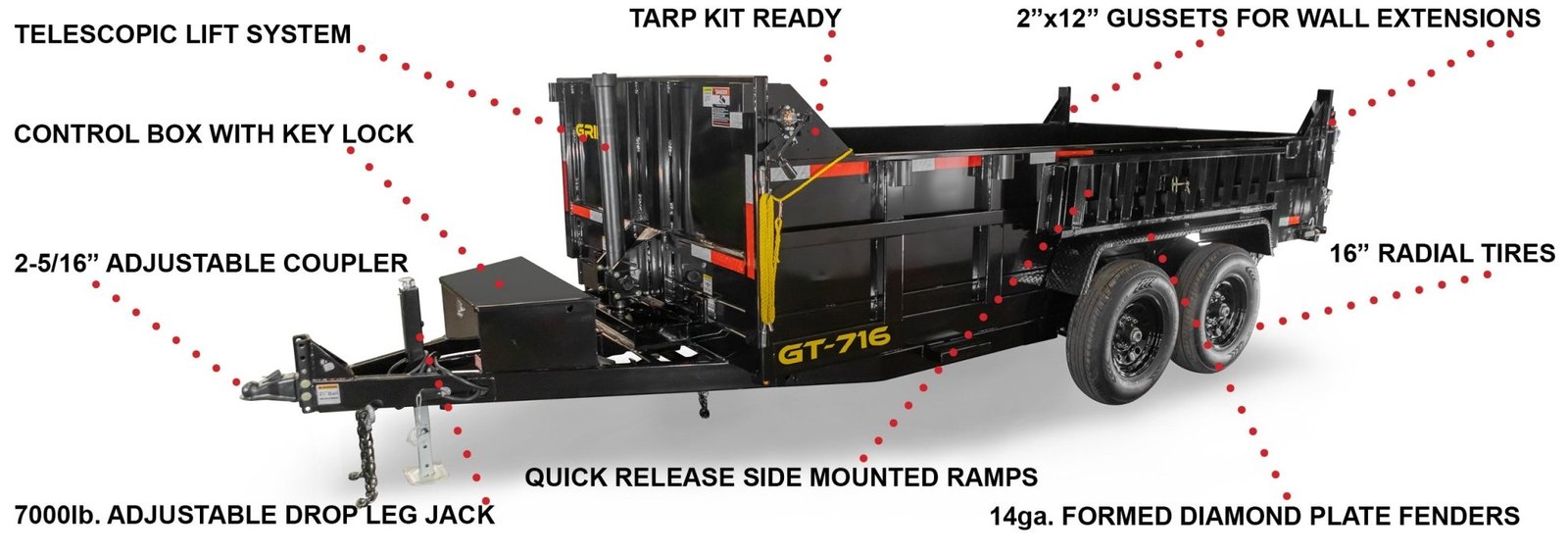

Features:

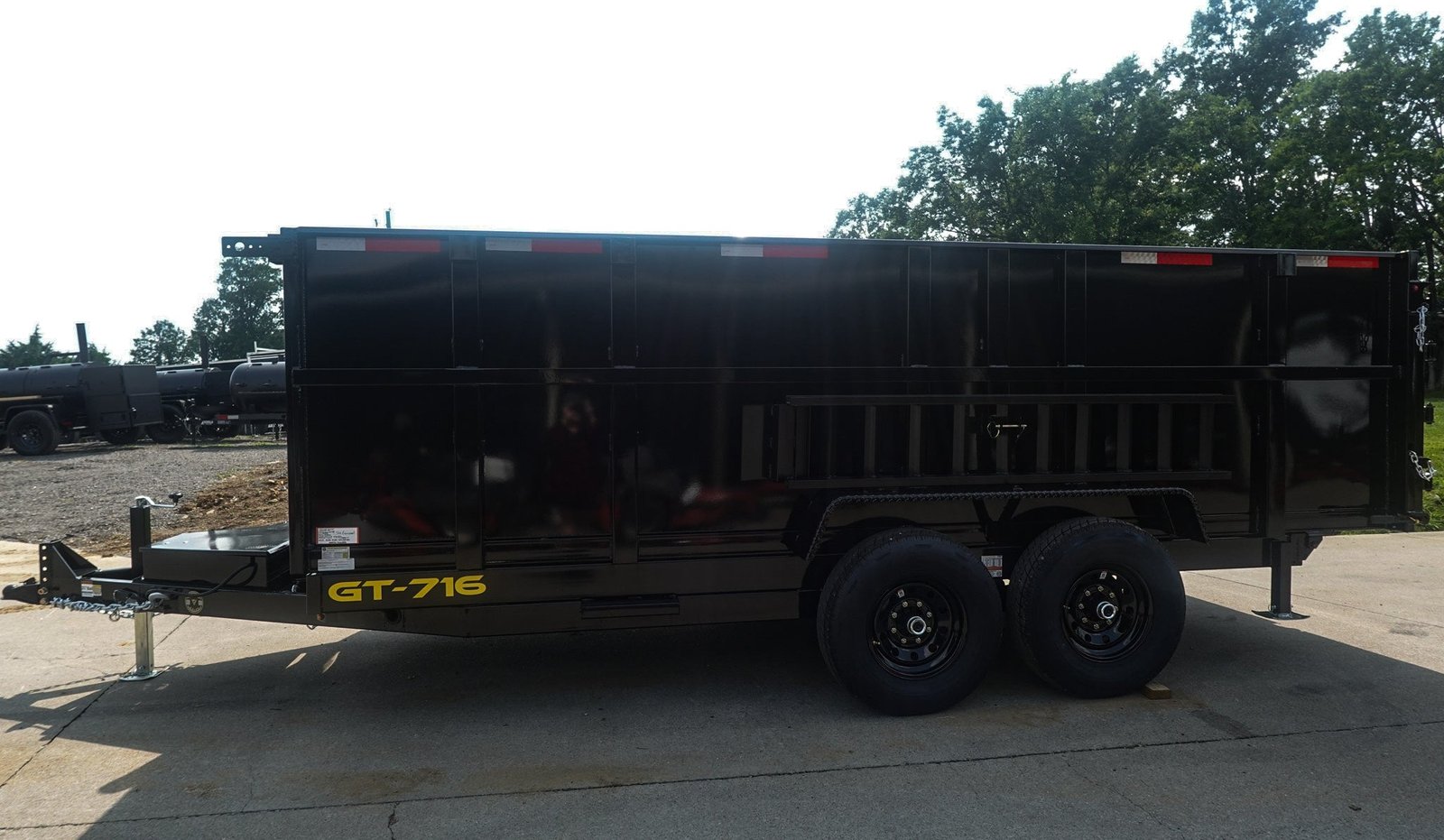

• Spacious & Heavy-Duty Design: 16′ long x 7′ wide trailer box with 48″ high sides and 29″ floor height for maximum load capacity and easy loading.

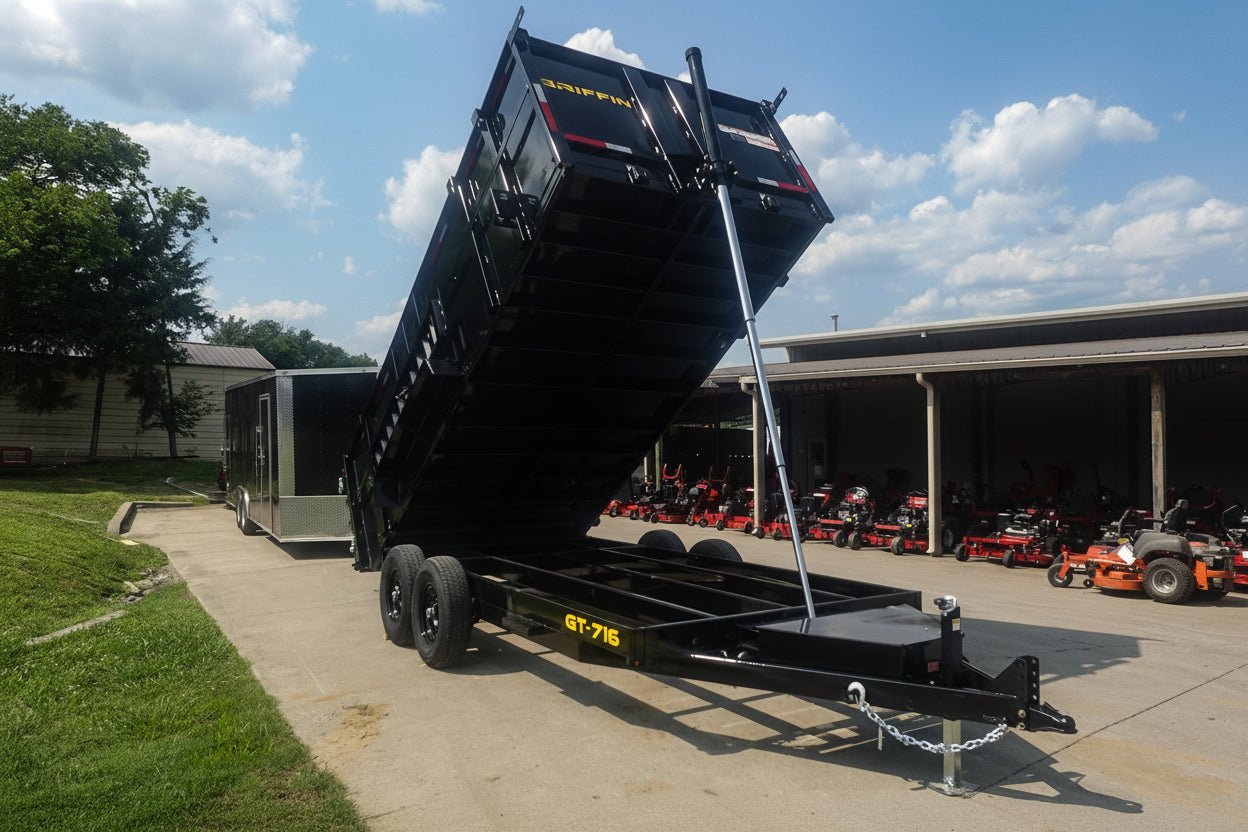

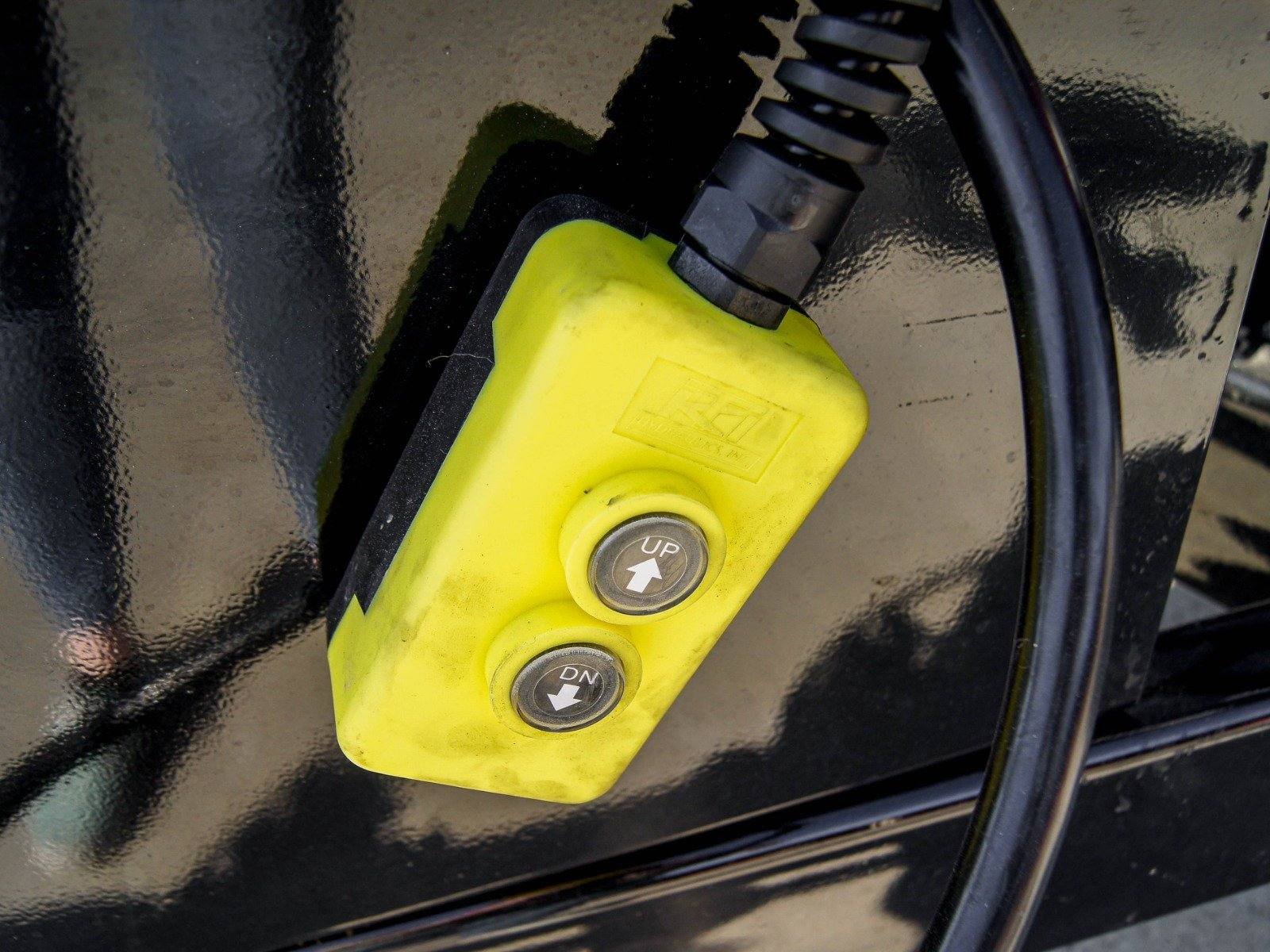

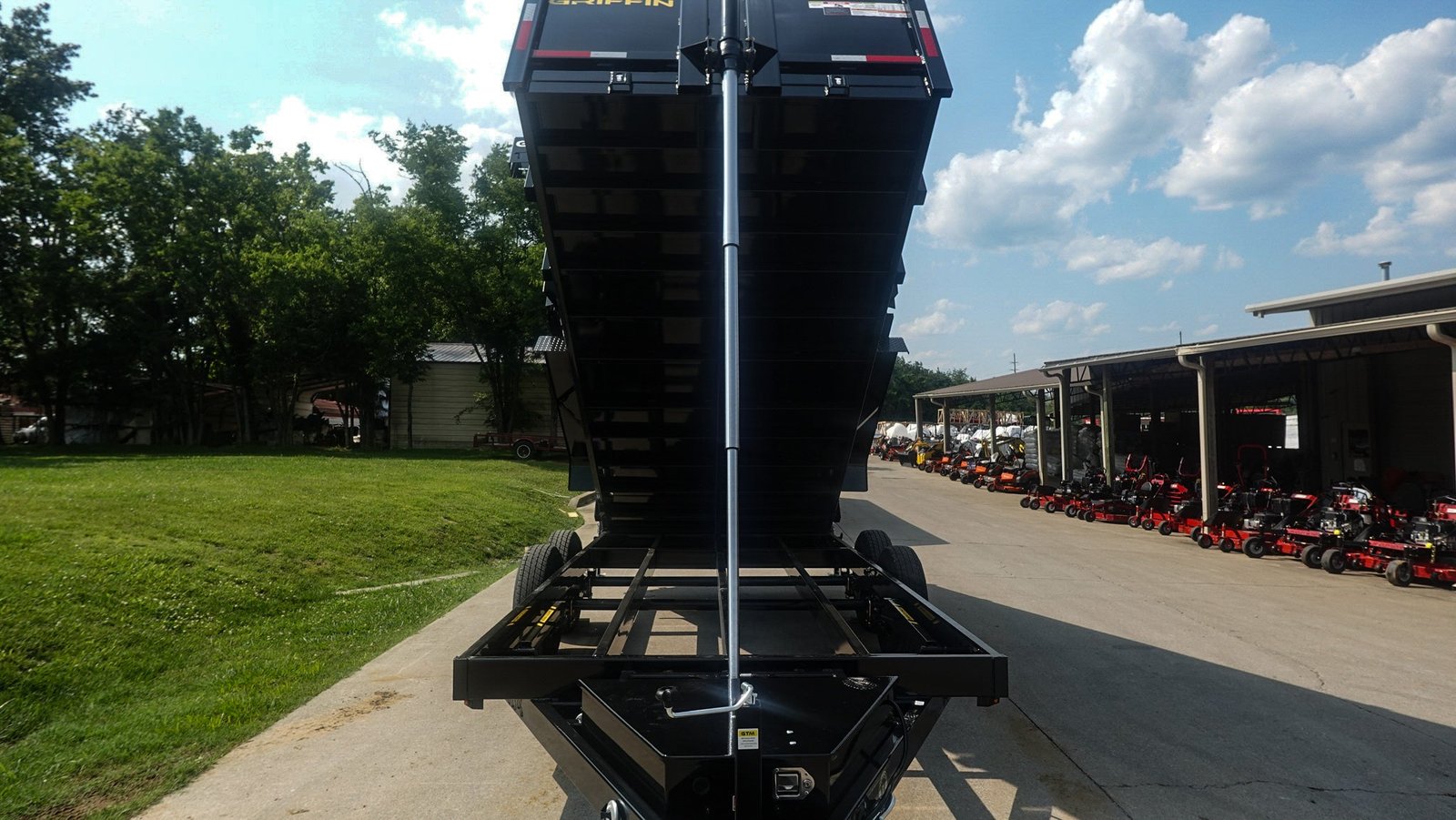

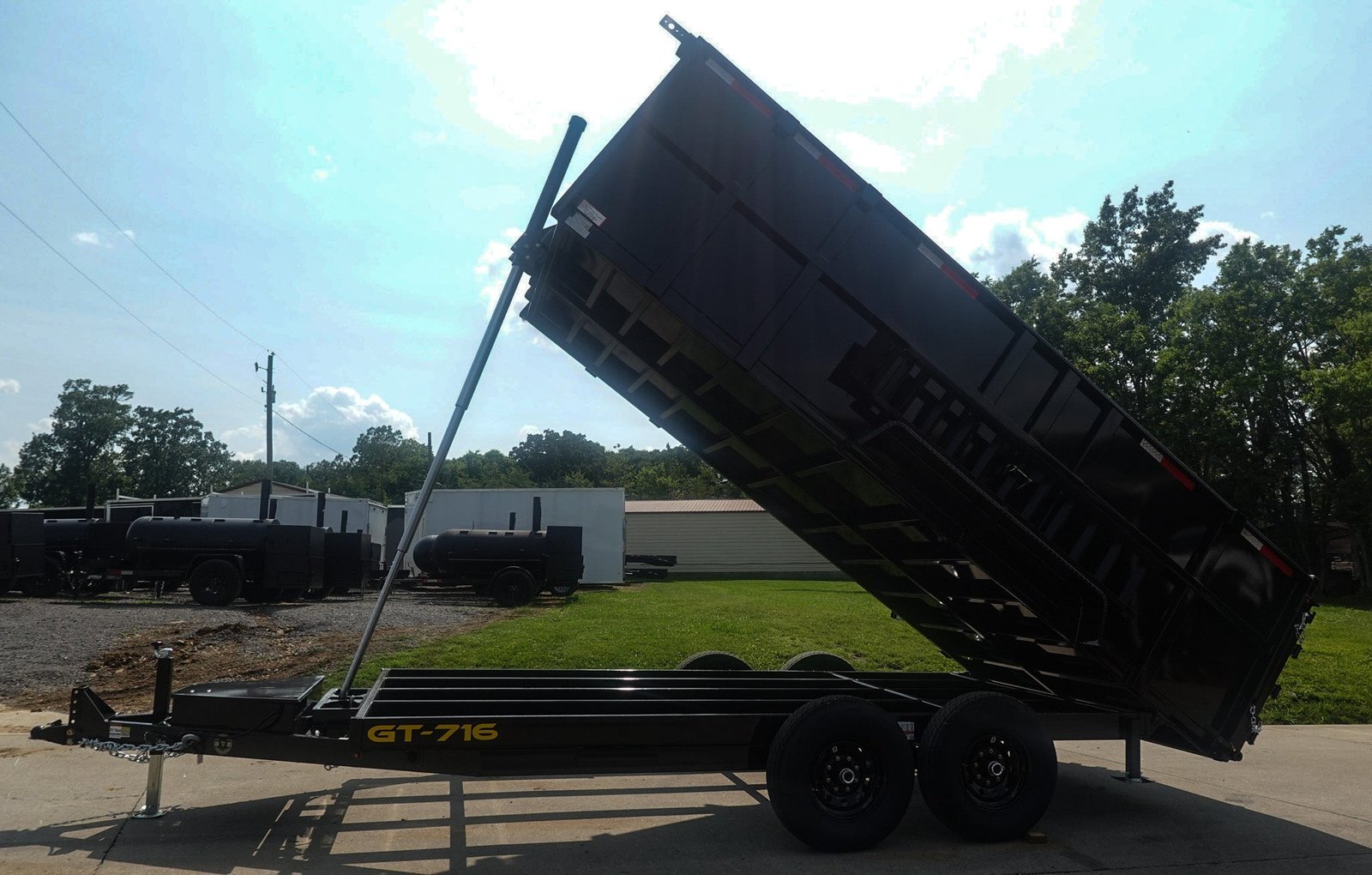

• Powerful Telescopic Dump System: 3-stage telescoping hydraulic ram with 12V DC pump (3200 PSI up / 0 PSI down) and 10,000 lb. dump capacity for efficient material handling.

• Durable Steel Construction: 10-gauge smooth steel floor and walls, 2″ x 12″ gussets, and 2″ x 3″ cross members spaced 16″ on center for unmatched strength.

• Tandem EZ-Lube Axles & Suspension: Dual 7,000 lb. galvanized axles with equalized leaf spring suspension provide smooth towing and low maintenance.

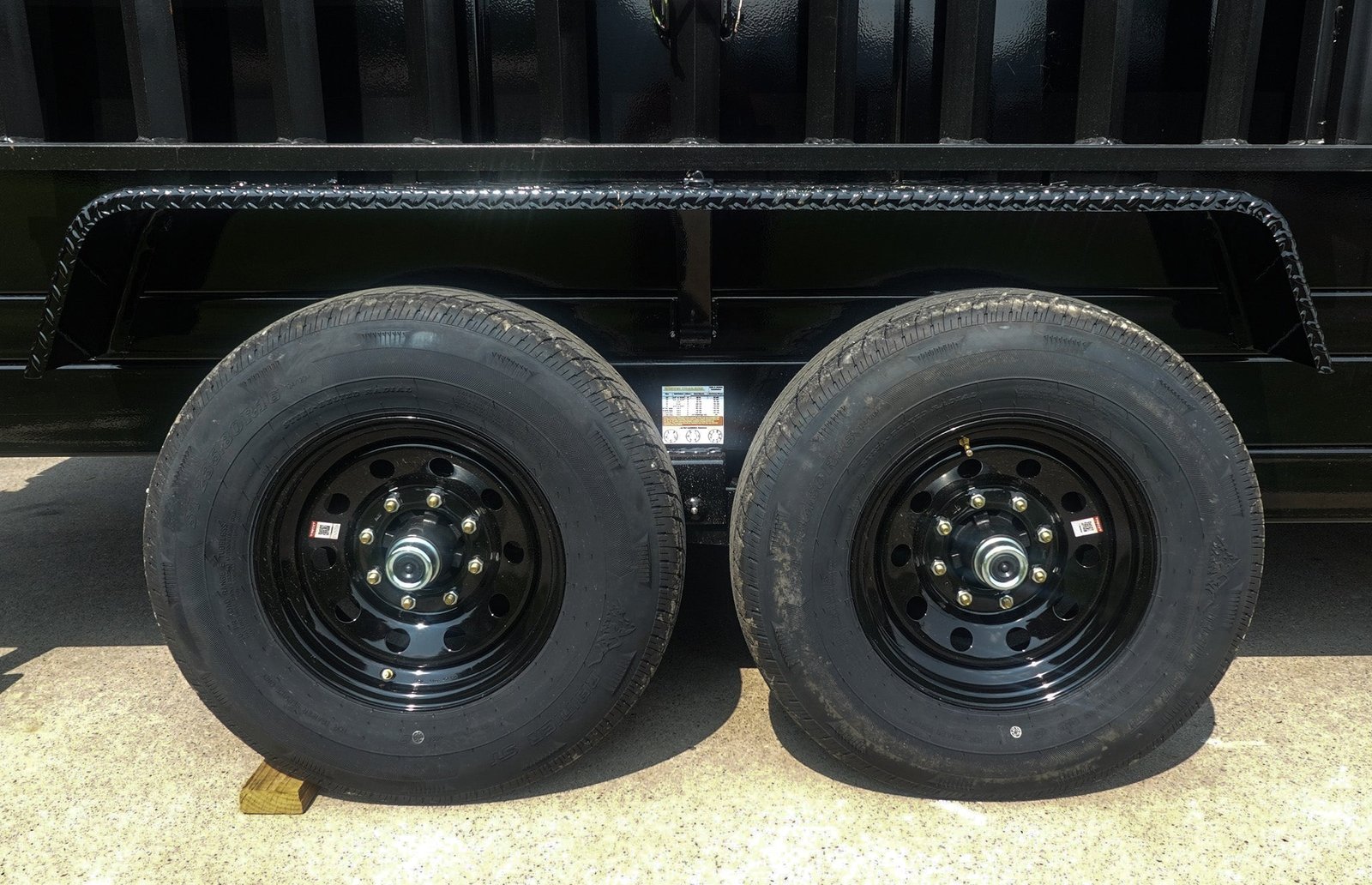

• Heavy-Duty Wheels & Tires: 16″ Kenda radial tires on black powder-coated steel wheels; 10-ply upgrade available for extra durability.

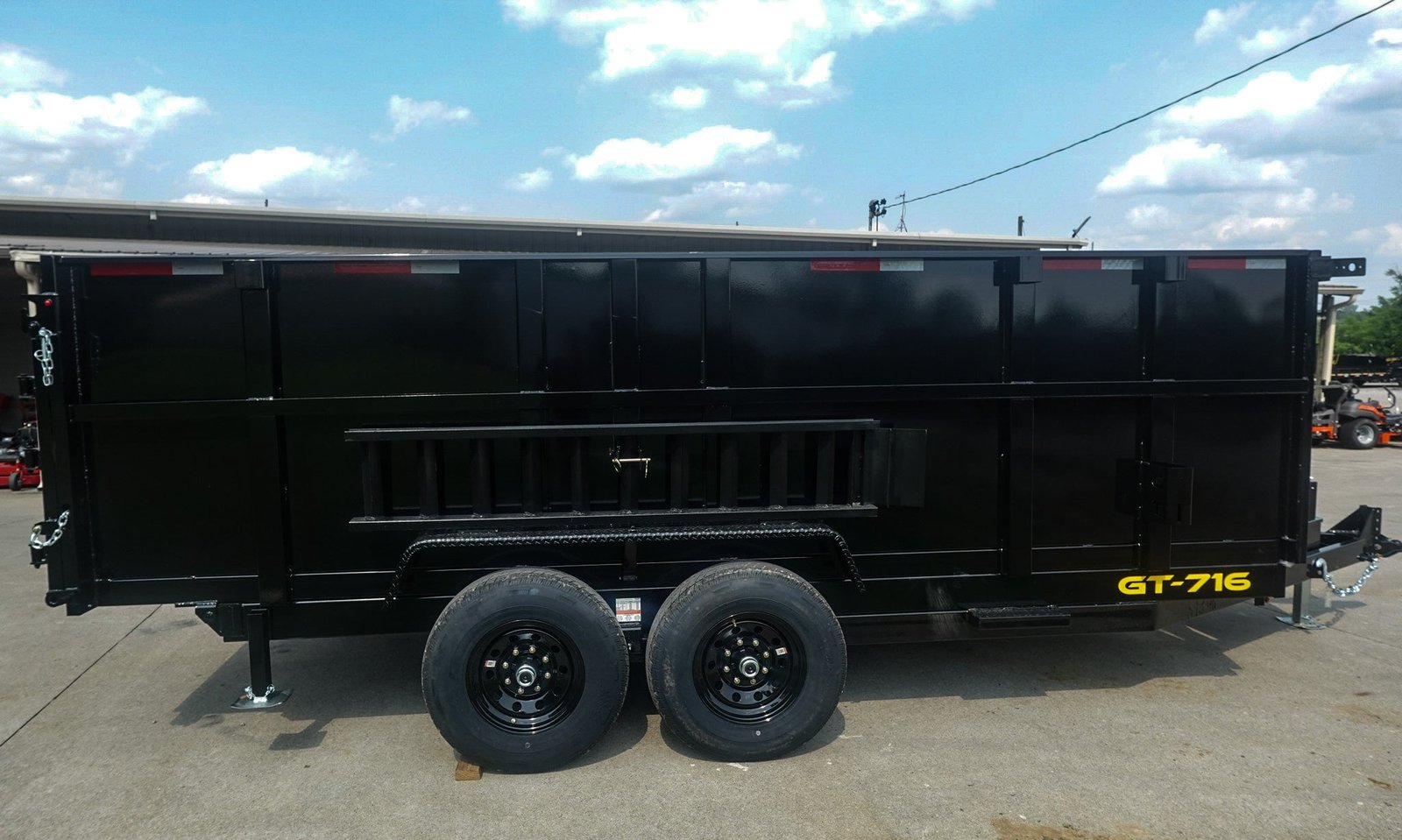

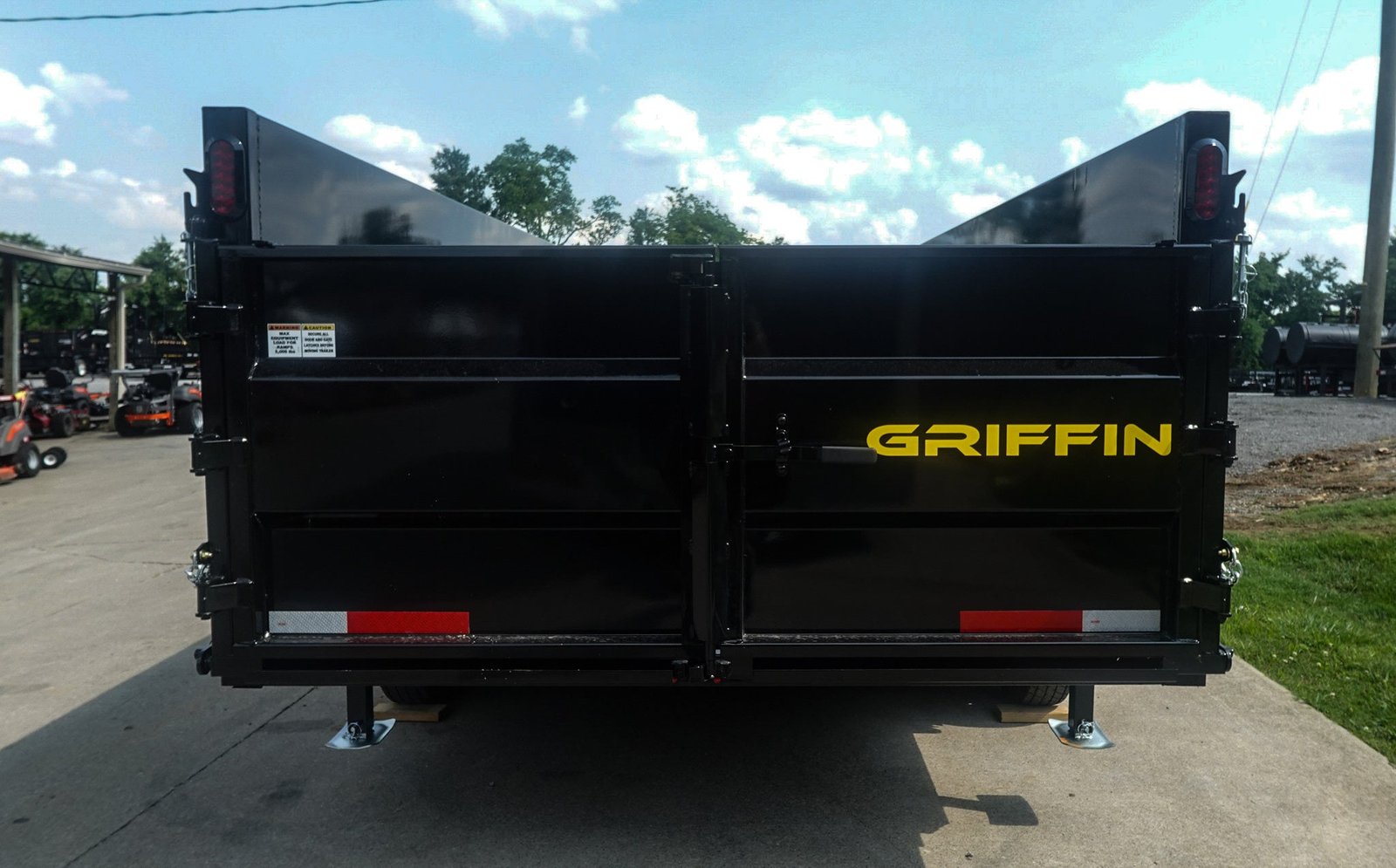

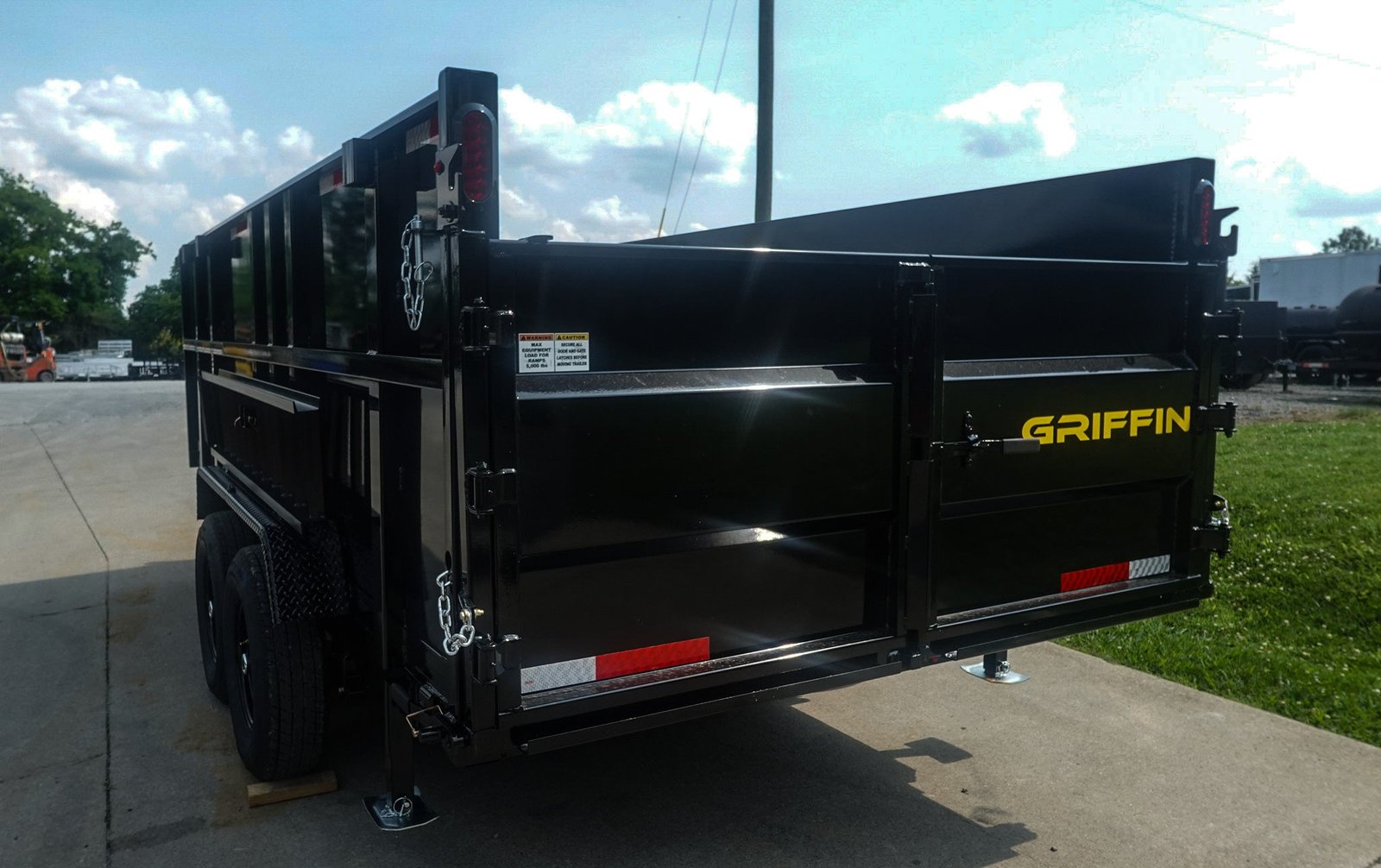

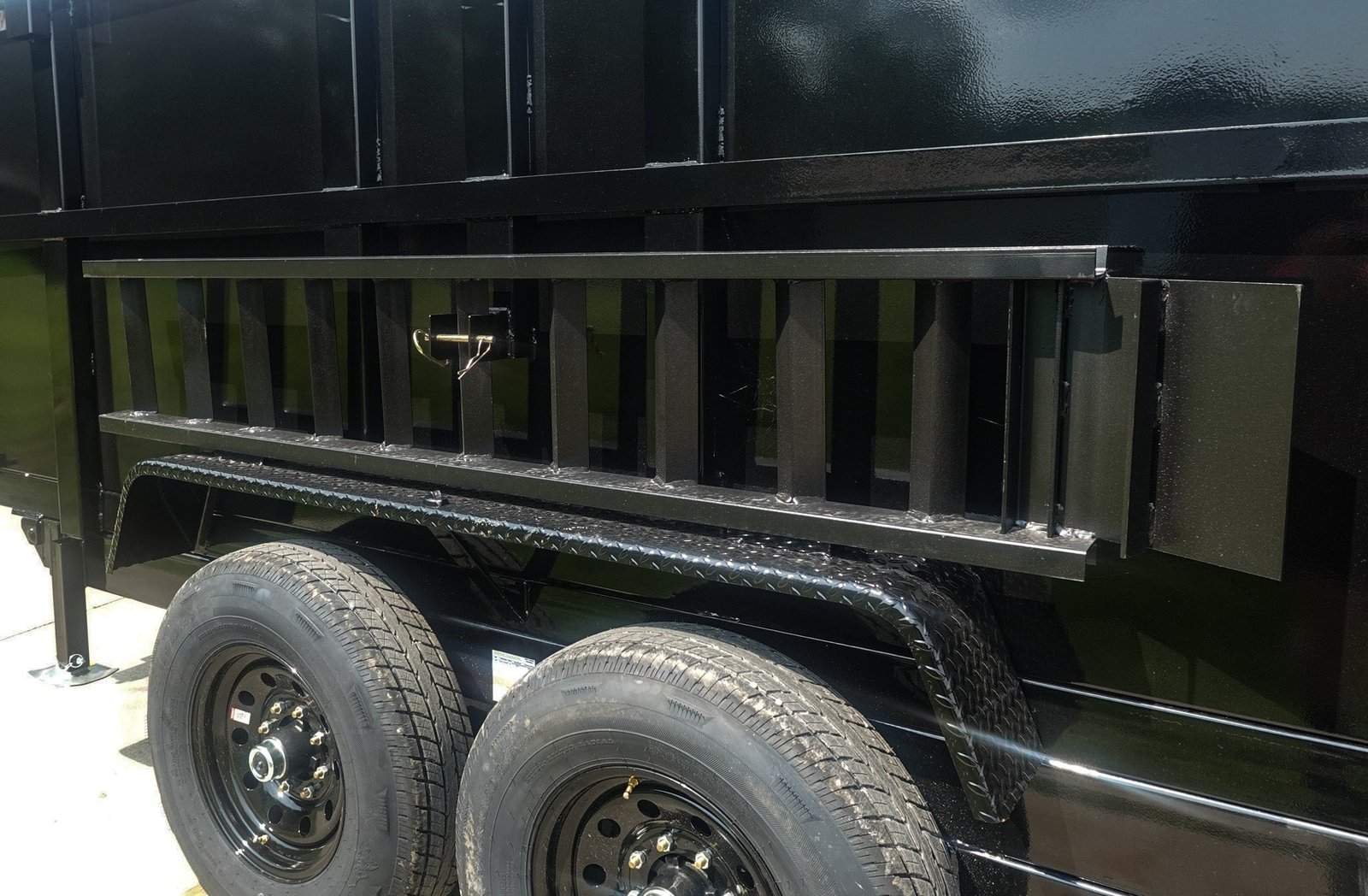

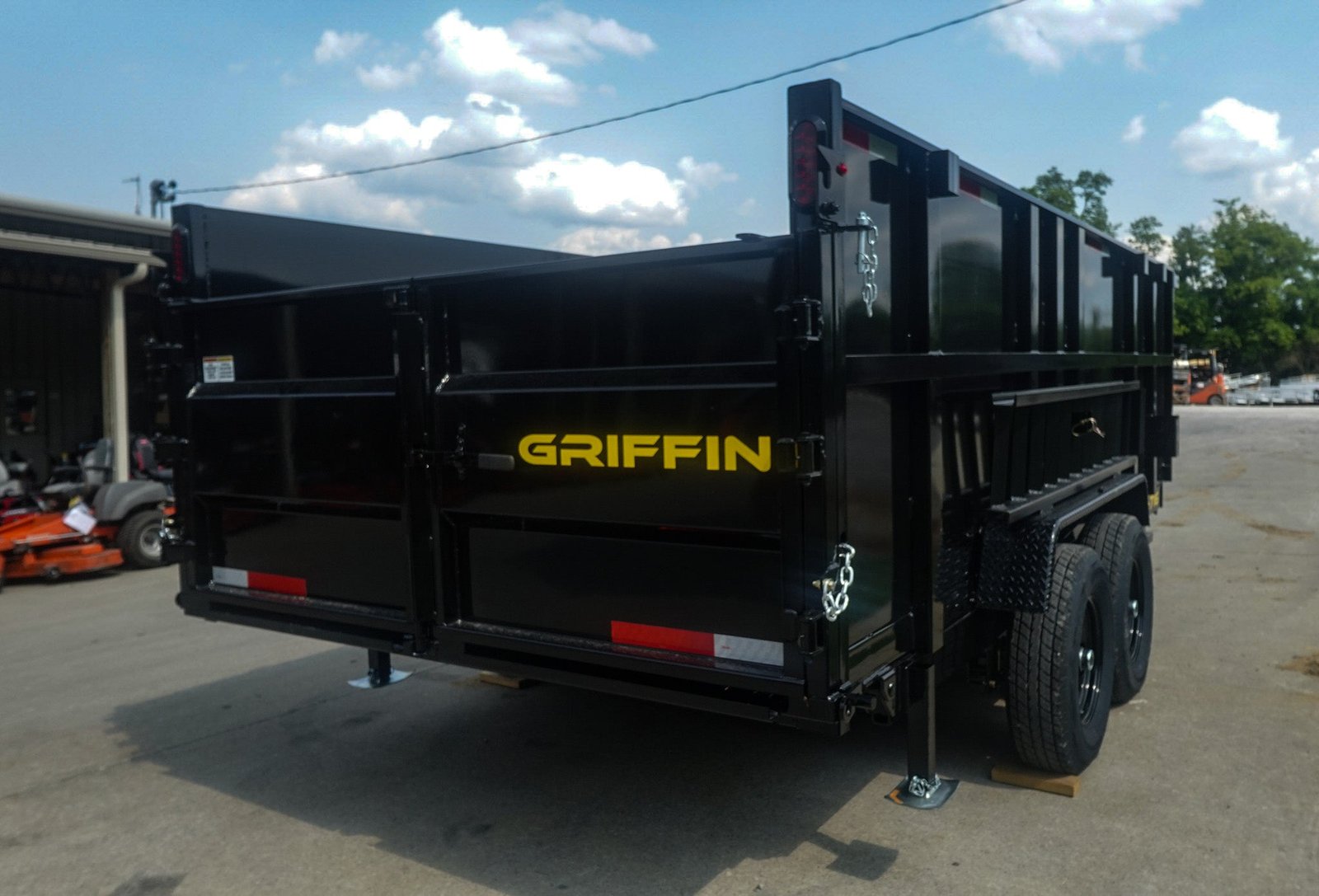

• Convenient Loading & Unloading: 80″ C-channel fender-mounted ramps, 2-way barn/spreader rear gate, and stake pockets for secure tie-down points.

• Reliable Electrical & Safety Features: LED Optronics lighting system, 7-pin electric plug, five 5,000 lb. D-ring tie-downs, and two 5/16″ x 35″ safety chains rated 11,700 lb.

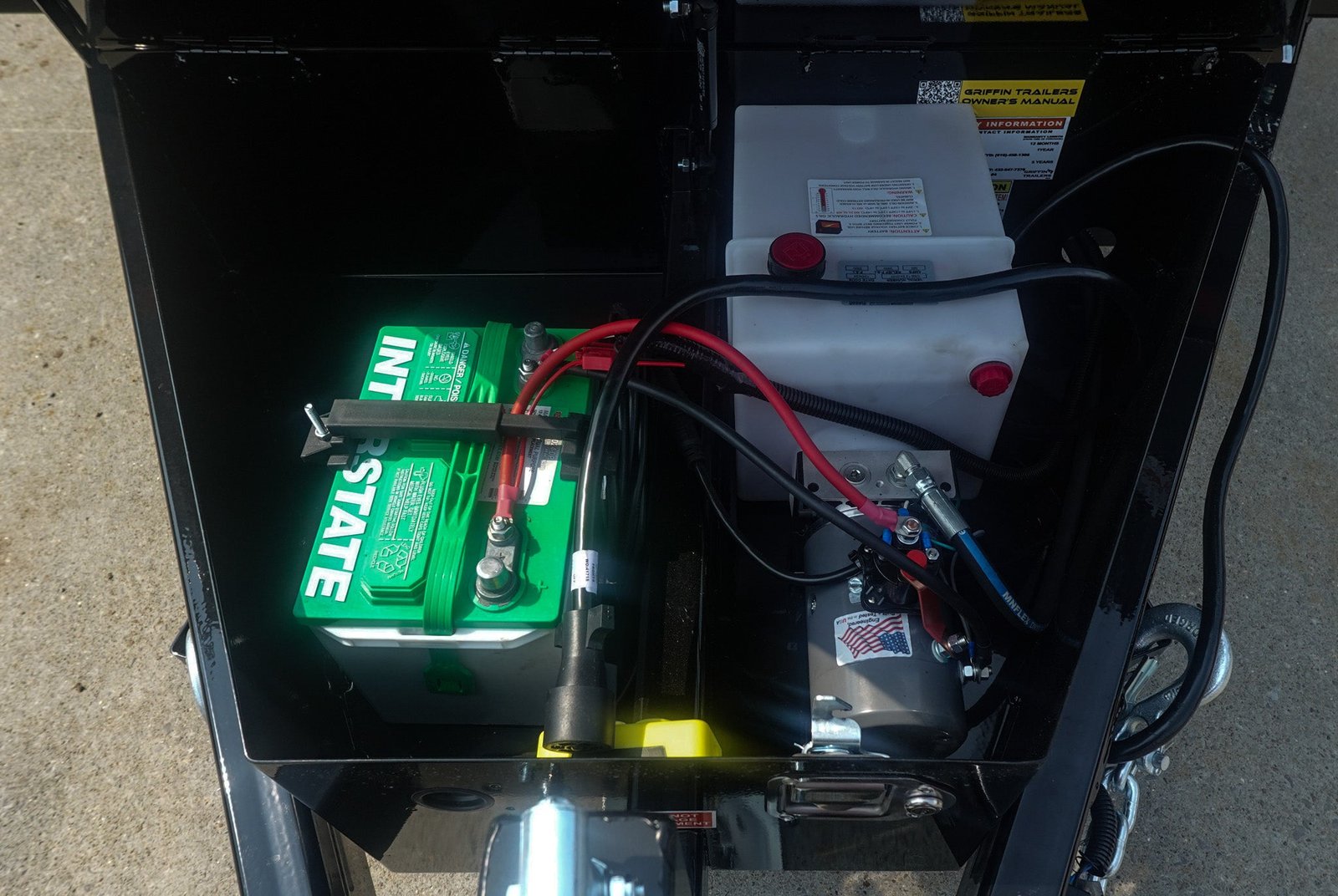

• Premium Components & Finish: Diamond plate fenders, Sherwin-Williams high-gloss powder coat, adjustable 7,000 lb. Ram jack, and battery-powered hydraulic system with spare tire mount.

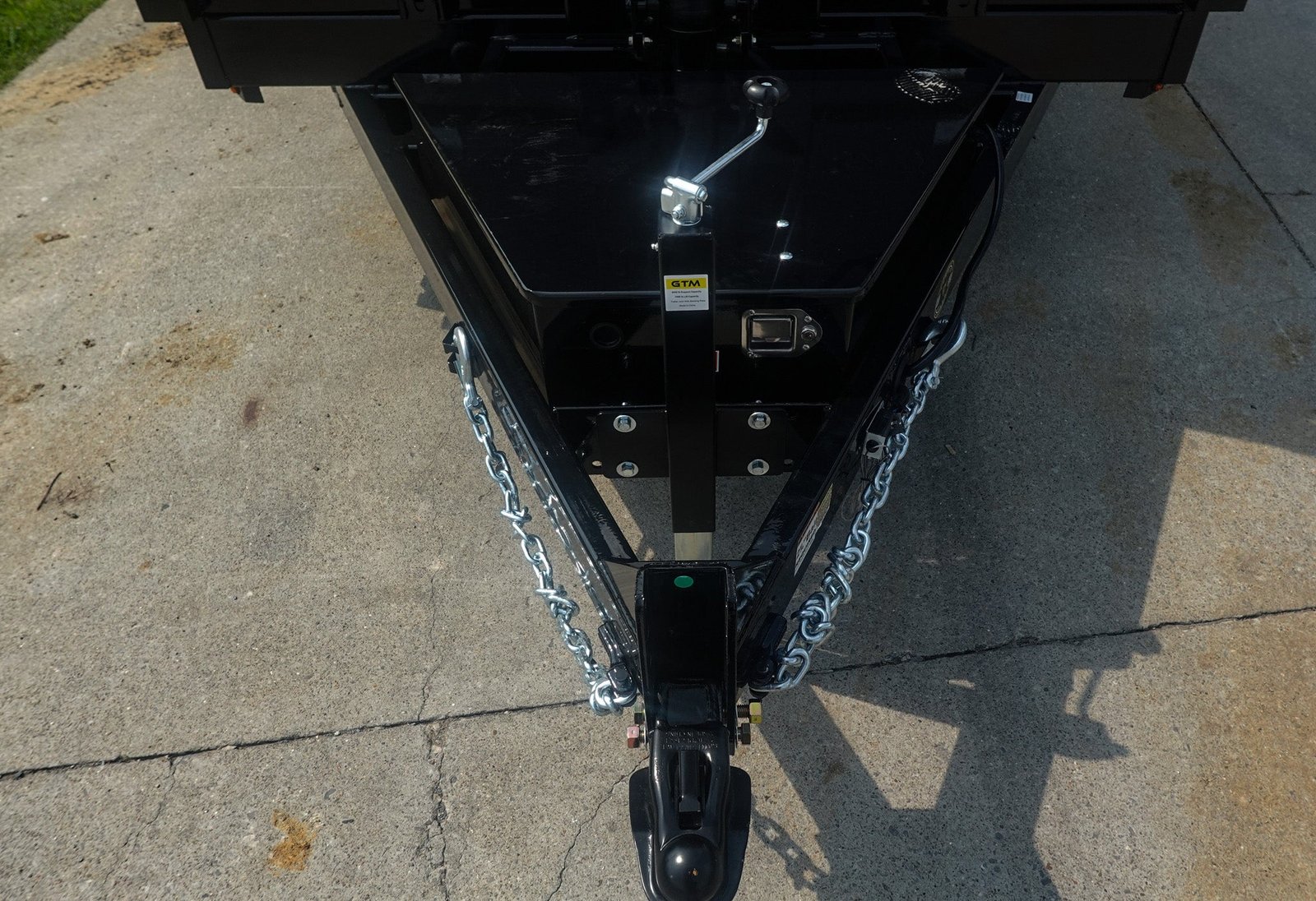

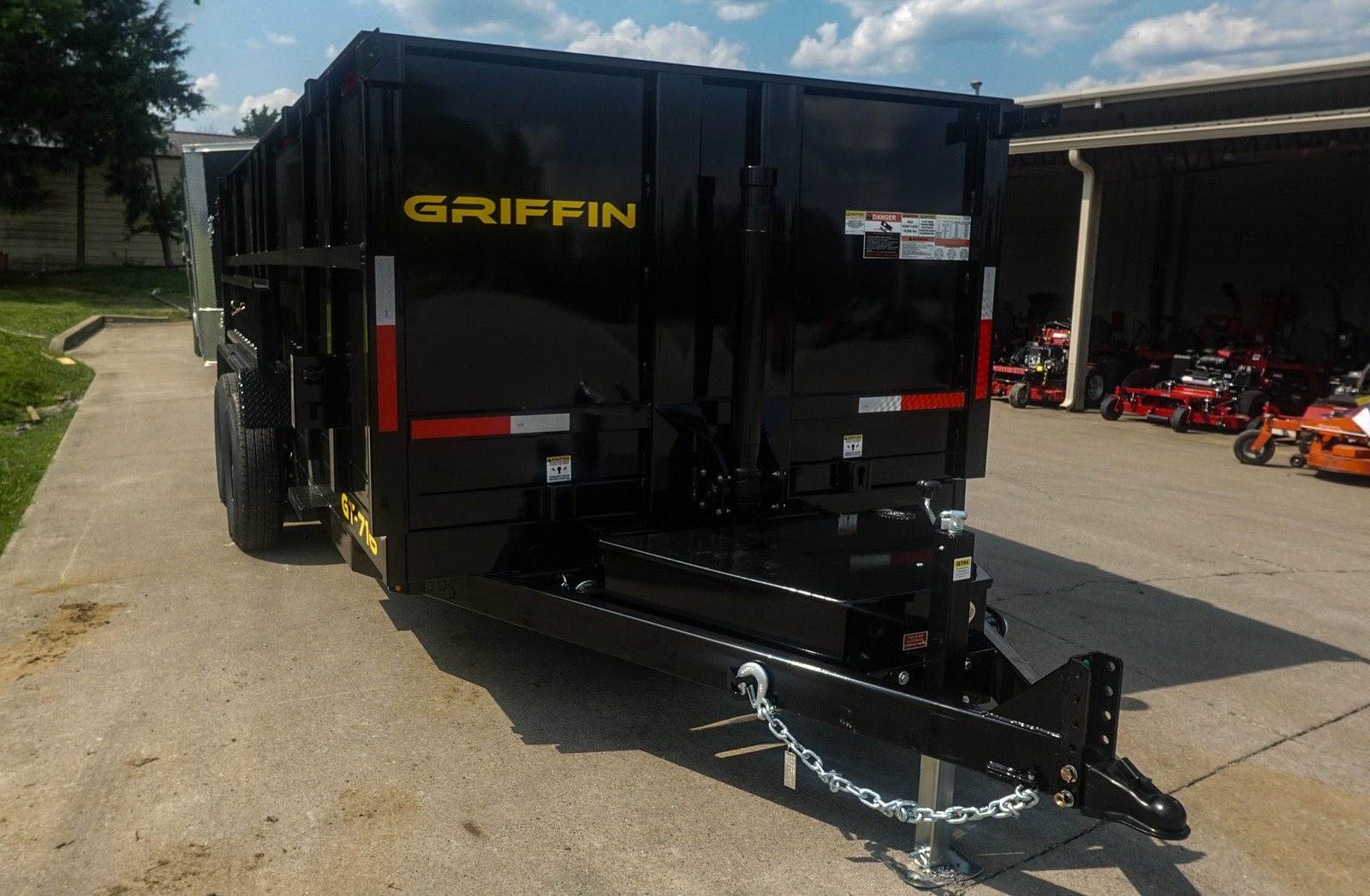

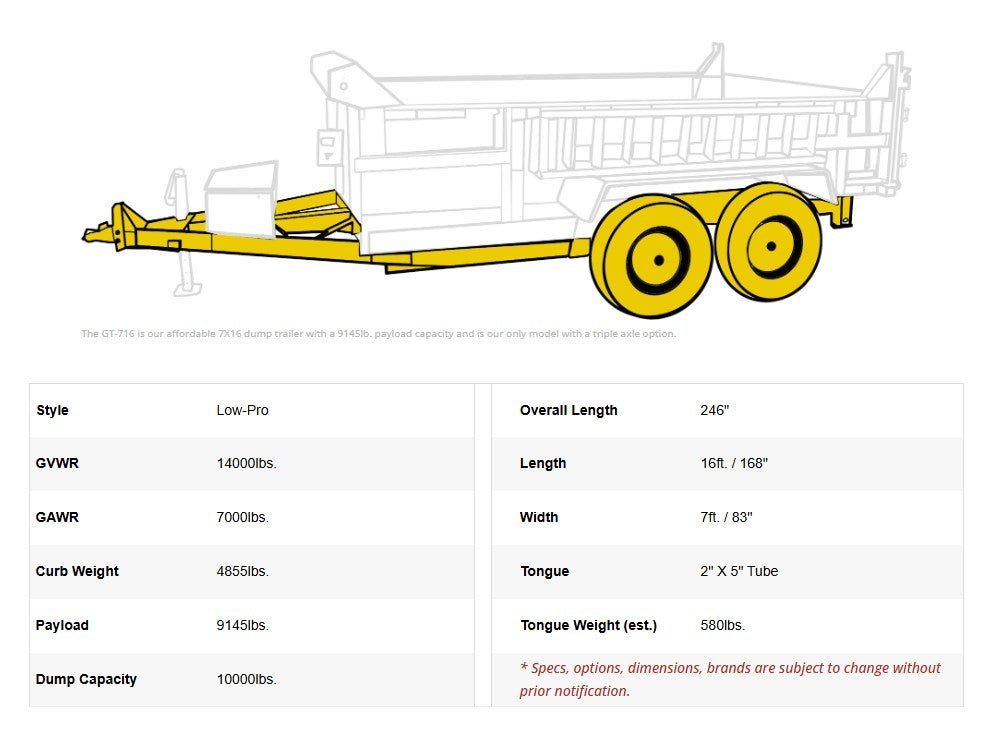

• Low-Pro Stability & Towing: Lower center of gravity design for safer towing, 2″ x 5″ tube steel tongue, and 580 lb. estimated tongue weight.

• High Payload & Versatility: 9,145 lb. payload, 10,000 lb. dump capacity, integrated tarp system ready, and rugged construction for long-term durability.
